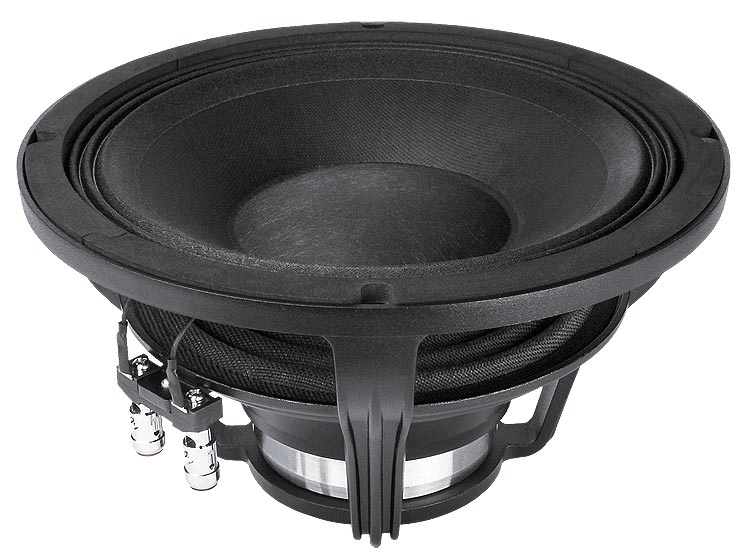

Faital PRO 10FH500 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
255,00 €*
|
| Bis 4 |
253,00 €*
|
| Bis 6 |
251,00 €*
|
| Ab 7 |
248,00 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11882
Produktinformationen "Faital PRO 10FH500 8 Ohm"
10FH500 - 10" - 500 W - 96 dB - 8 Ohm - 10FH500
Technische Daten Faital PRO 10FH500 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.4 Ohm |
| AES Power Handling | 500 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 60÷4000 Hz |
| Flux Density | 1.2 T |
| Magnet | Neodymium Slug |
| Demodulation | No |
| Cone Surround | Triple Roll |
| Fs | 60 Hz |
| Re | 5.1 Ohm |
| Qes | 0.28 |
| Qms | 3.3 |
| Qts | 0.26 |
| Vas | 25.8 dm^3 (0.91 ft^3) |
| Sd | 351 cm^2 (54.41 in^2) |
| Xmax | 7.50 mm |
| Xdamage | 12.5 mm |
| Mms | 47.0 g |
| Bl | 17.9 N/A |
| Le | 0.85 mH |
| Mmd | 39.6 g |
| Cms | 0.15 mm/N |
| Rms | 5.4 kg/s |
| Eta Zero | 1.91 % |
| EBP | 214 Hz |

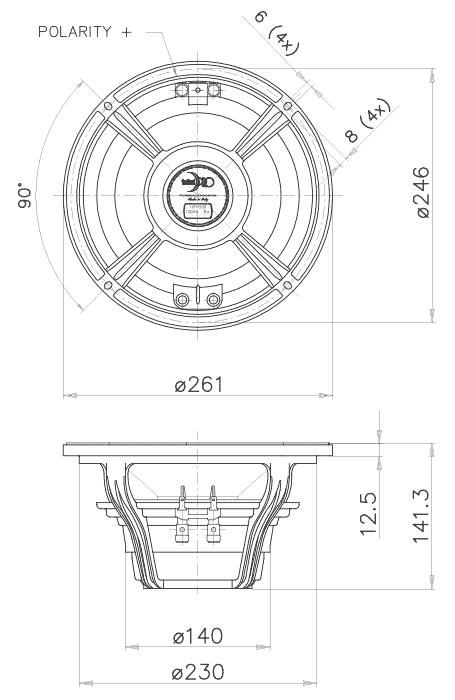

Mechanische Daten 10FH500
| Nominal Diameter | 250 mm (10 in) |
| Overall Diameter | 261 mm (10.28 in) |
| Bolt Circle Diameter | 246 mm (9.69 in) |
| Baffle Cutout Diameter | 232 mm (9.13 in) |
| Depth | 141.3 mm (5.56 in) |
| Flange and Gasket Thickness | 12.5 mm (0.49 in) |
| Net Weight | 3.4 kg (7.5 lb) |
| Shipping Box (Single Carton Box) |
294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in) |
| Shipping Weight | 4 kg (8.8 lb) |
Faital PRO 10FH500
| Coaxial: | NEIN |
|---|---|
| Größe: | 10" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
