Faital PRO 10FE200 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
85,00 €*
|
| Bis 4 |
84,50 €*
|
| Bis 6 |
84,00 €*
|
| Ab 7 |
83,00 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11881
Produktinformationen "Faital PRO 10FE200 8 Ohm"
10FE200 - 10" - 150 W - 96 dB - 8 Ohm - 10FE200
Technische Daten Faital PRO 10FE200 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.2 Ohm |
| AES Power Handling | 150 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 50÷4500 Hz |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Demodulation | No |
| Cone Surround | Accordion (4 waves) |
| Fs | 55 Hz |
| Re | 5.9 Ohm |
| Qes | 0.74 |
| Qms | 11.3 |
| Qts | 0.69 |
| Vas | 61.7 dm^3 (2.18 ft^3) |
| Sd | 359.7 cm^2 (55.75 in^2) |
| Xmax | 4.67 mm |
| Xdamage | 10.4 mm |
| Mms | 24.5 g |
| Bl | 8.2 N/A |
| Le | 0.42 mH |
| Mmd | 16.8 g |
| Cms | 0.34 mm/N |
| Rms | 0.7 kg/s |
| Eta Zero | 1.34 % |
| EBP | 74 Hz |

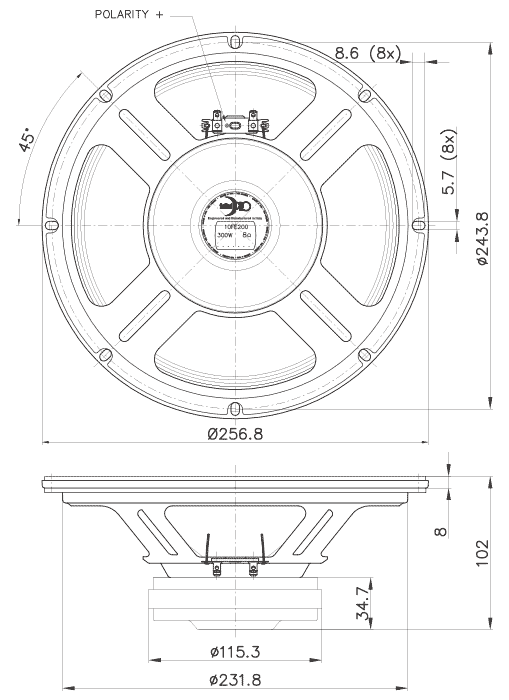

Mechanische Daten 10FE200
| Nominal Diameter | 250 mm (10 in) |
| Overall Diameter | 256.8 mm (10.11 in) |
| Bolt Circle Diameter | 243.8 mm (9.60 in) |
| Baffle Cutout Diameter | 233.8 mm (9.20 in) |
| Depth | 102 mm (4.02 in) |
| Flange and Gasket Thickness | 8 mm (0.31 in) |
| Net Weight | 2.2 kg (4.9 lb) |
| Shipping Box (Single Carton Box) |
282 x 280 x 140 mm (11.0 x 11.0 x 5.5 in) |
| Shipping Weight | 2.6 kg (5.7 lb) |
Faital PRO 10FE200
| Coaxial: | NEIN |
|---|---|
| Größe: | 10" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,61 - 0,99 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
