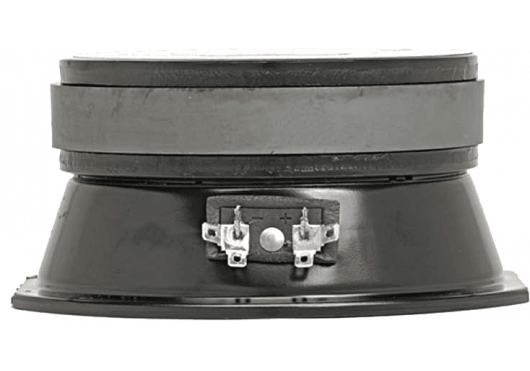

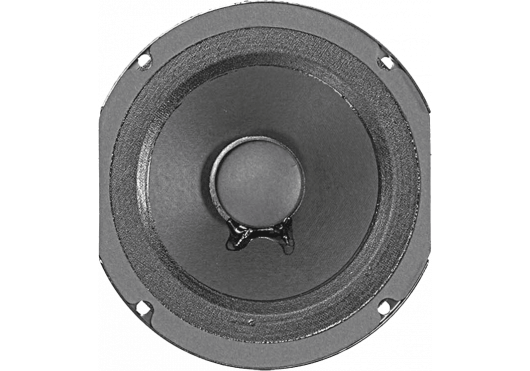

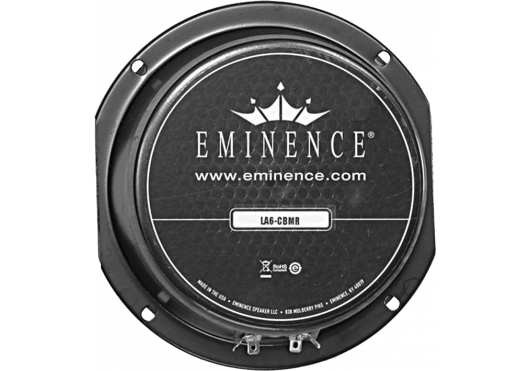

Eminence LA6-CBMR 8 Ohm

Produktinformationen "Eminence LA6-CBMR 8 Ohm"

Beschreibung Eminence LA6-CBMR 8 Ohm

LA6-CBMR - empfohlen für Pro-Audio Anwendungen im mittleren Frequenzbereich von 500 Hz-3KHz. Verfügt über einen geschlossenen Korb für den Einbau in Line-Arrays.



SPECIFICATION LA6-CBMR
Nominal Basket Diameter 6", 165 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power

300 W

Watts 150 W
Resonance 460 Hz
Usable Frequency Range 500 Hz - 5.4 kHz
Sensitivity* 97.8 dB
Magnet Weight 38 oz.
Gap Height 0.31", 7.9 mm
Voice Coil Diameter 1.5", 38 mm

THIELE & SMALL PARAMETERS LA6-CBMR

Resonant Frequency (fs) 460 Hz
DC Resistance (Re) 6.3 Ω
Coil Inductance (Le) 0.33m H
Mechanical Q (Qms) 3.13
Electromagnetic Q (Qes) 1.24
Total Q (Qts) 0.89
Compliance Equivalent Volume (Vas) 0.4 liters / 0.01 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 2.7 cc
Mechanical Compliance of Suspension (Cms) 0.01 mm/N
BL Product (BL) 11.1 T-M
Diaphragm Mass Inc. Airload (MMs) 9 grams
Efficiency Bandwidth Product (EBP) 371
Maximum Linear Excursion (Xmax) 0.2 mm
Surface Area of Cone (Sd) 133.1 cm2
Maximum Mechanical Limit (Xlim) 0.8 mm
MOUNTING INFORMATION LA6-CBMR
Recommended Enclosure Volume
Sealed Acceptable
Vented - liters / - cu.ft.
Driver Volume Displaced 0.022 cu.ft. / 0.62 liters
Major Diameter 6.59", 167.4 mm
Flat to Flat Diameter 6", 152.4 mm
Baffle Hole Diameter 5.65", 143.5 mm
Front Sealing Gasket Yes
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 6.06", 153.9mm
Depth 2.77", 70.4 mm
Net Weight 6.7 lbs, 3.04 kg
Shipping Weight 7.2 lbs, 3.27 kgs
MATERIALS OF CONSTRUCTION LA6-CBMR
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented and extended core

Basket Materials Pressed steel basket with truncated sides
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap



Eminence LA6-CBMR



DATENBLATT



Coaxial: NEIN
Größe: 6"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,61 - 0,99
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
