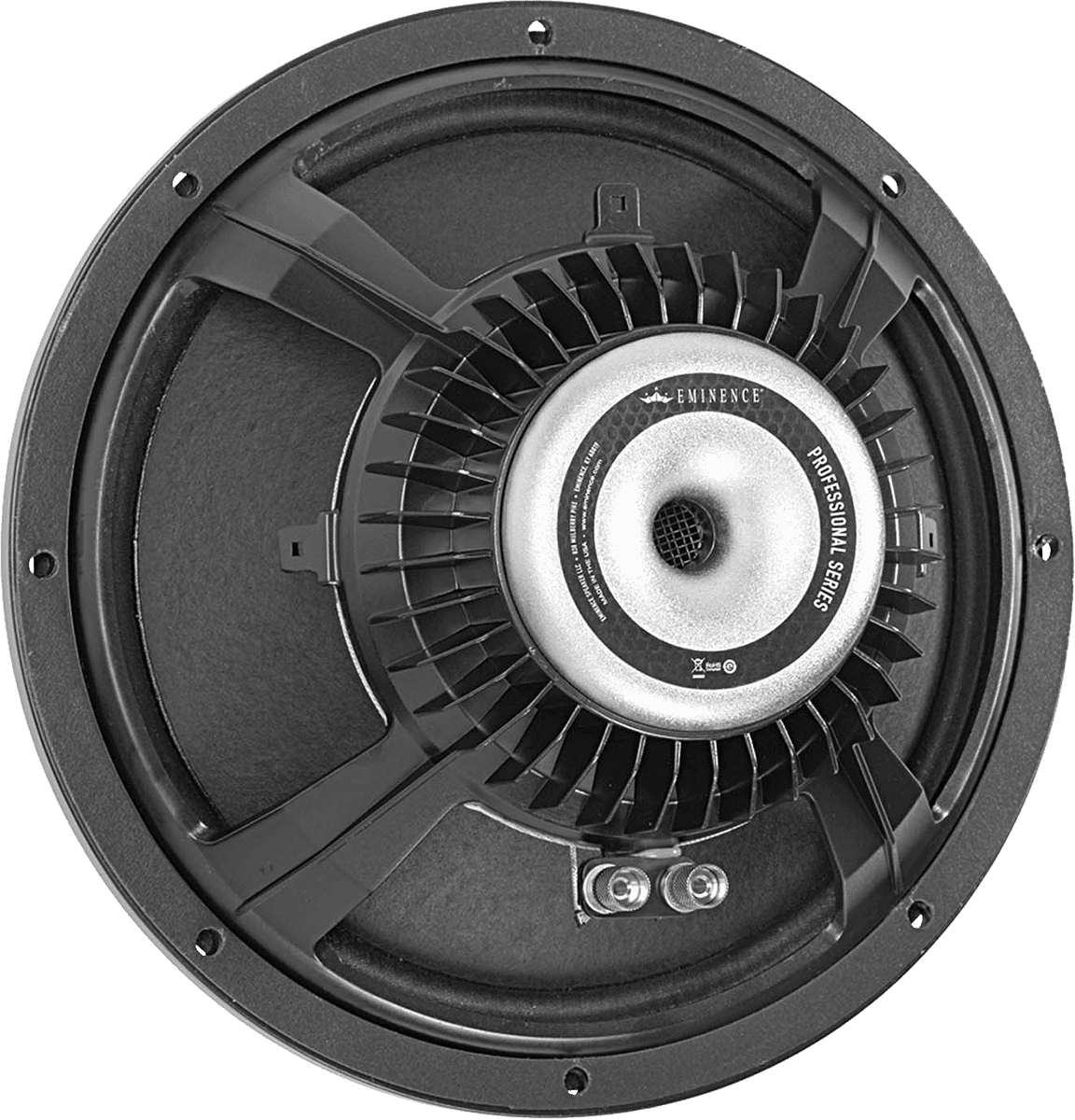

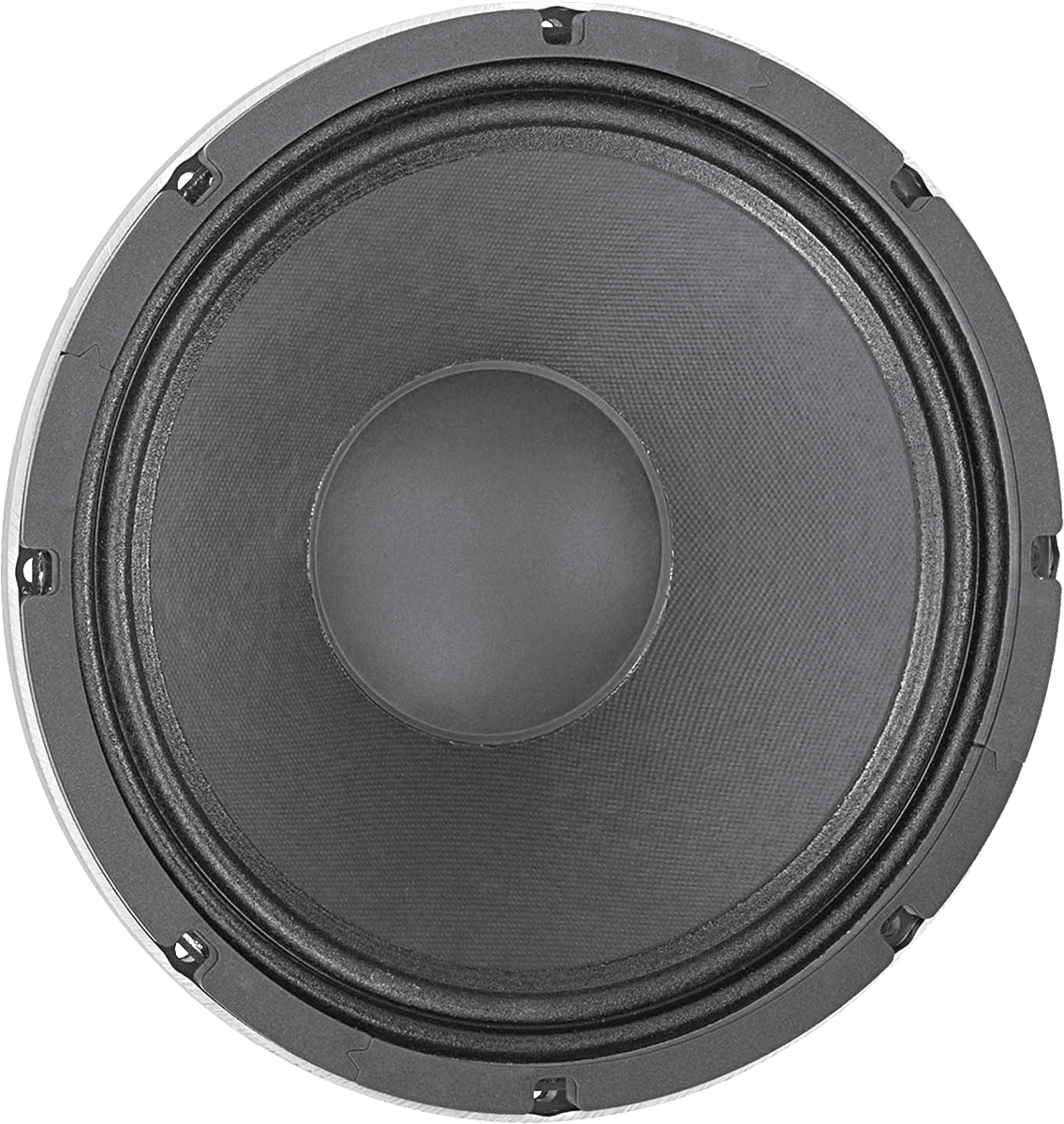

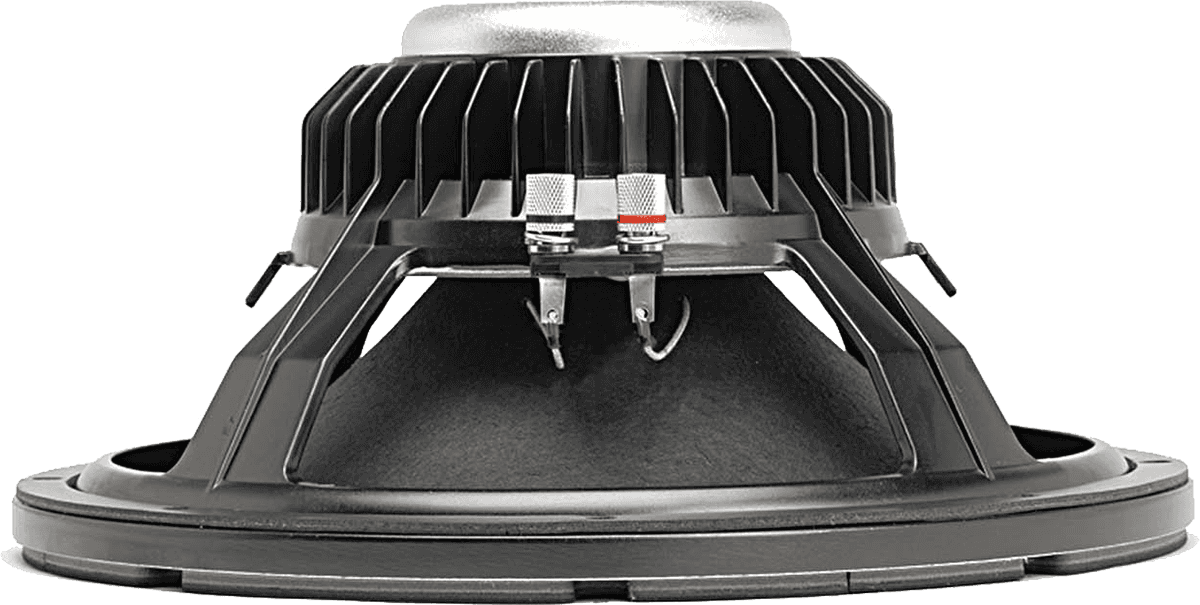

Eminence KappaLITE 3012HO 8 Ohm

Produktinformationen "Eminence KappaLITE 3012HO 8 Ohm"

Beschreibung Eminence KappaLITE 3012HO 8 Ohm

KappaLITE 3012HO - empfohlen als Tieftöner, Bass/Mitten- Speaker oder reiner Mitteltöner in geschlossenen und Bassreflex- Gehäusen. Eine beliebte Wahl für 12" - Line -Arrays und Bassgitarrenanwendungen.


SPECIFICATION KappaLITE 3012HO
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power

800 W

Watts 400 W
Resonance 52 Hz
Usable Frequency Range 51 Hz - 3.5 kHz
Sensitivity* 100.5 dB
Magnet Weight 11 oz.
Gap Height 0.365", 9.3 mm
Voice Coil Diameter 3", 76 mm

THIELE & SMALL PARAMETERS KappaLITE 3012HO

Resonant Frequency (fs) 52 Hz
DC Resistance (Re) 5.5 Ω
Coil Inductance (Le) 0.57m H
Mechanical Q (Qms) 8.39
Electromagnetic Q (Qes) 0.33
Total Q (Qts) 0.32
Compliance Equivalent Volume (Vas) 81.1 liters / 2.86 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 330 cc
Mechanical Compliance of Suspension (Cms) 0.2 mm/N
BL Product (BL) 15.9 T-M
Diaphragm Mass Inc. Airload (MMs) 47 grams
Efficiency Bandwidth Product (EBP) 157
Maximum Linear Excursion (Xmax) 6.2 mm
Surface Area of Cone (Sd) 532.4 cm2
Maximum Mechanical Limit (Xlim) 12.5 mm
MOUNTING INFORMATION KappaLITE 3012HO
Recommended Enclosure Volume
Sealed 28-76 liters / 1-2.7 cu.ft.
Vented 41-110 liters / 1.5-3.9 cu.ft.
Driver Volume Displaced 0.054 cu.ft. / 1.53 liters
Overall Diameter 12.38", 314.5 mm
Baffle Hole Diameter 11.06", 280.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 11.62", 295.2mm
Depth 5.63", 143 mm
Net Weight 7.1 lbs, 3.22 kg
Shipping Weight 8.7 lbs, 3.95 kgs
MATERIALS OF CONSTRUCTION KappaLITE 3012HO
Coil Construction Aluminum voice coil
Coil Former Kapton former
Magnet Composition Neodymium magnet
Core Details Vented core

Basket Materials Die-cast aluminum basket
Cone Composition Treated paper cone
Cone Edge Composition Sealed cloth surround
Dust Cap Composition Treated paper dust cap


Eminence KappaLITE 3012HO


DATENBLATT



Coaxial: NEIN
Größe: 12"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,31 - 0,35
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
