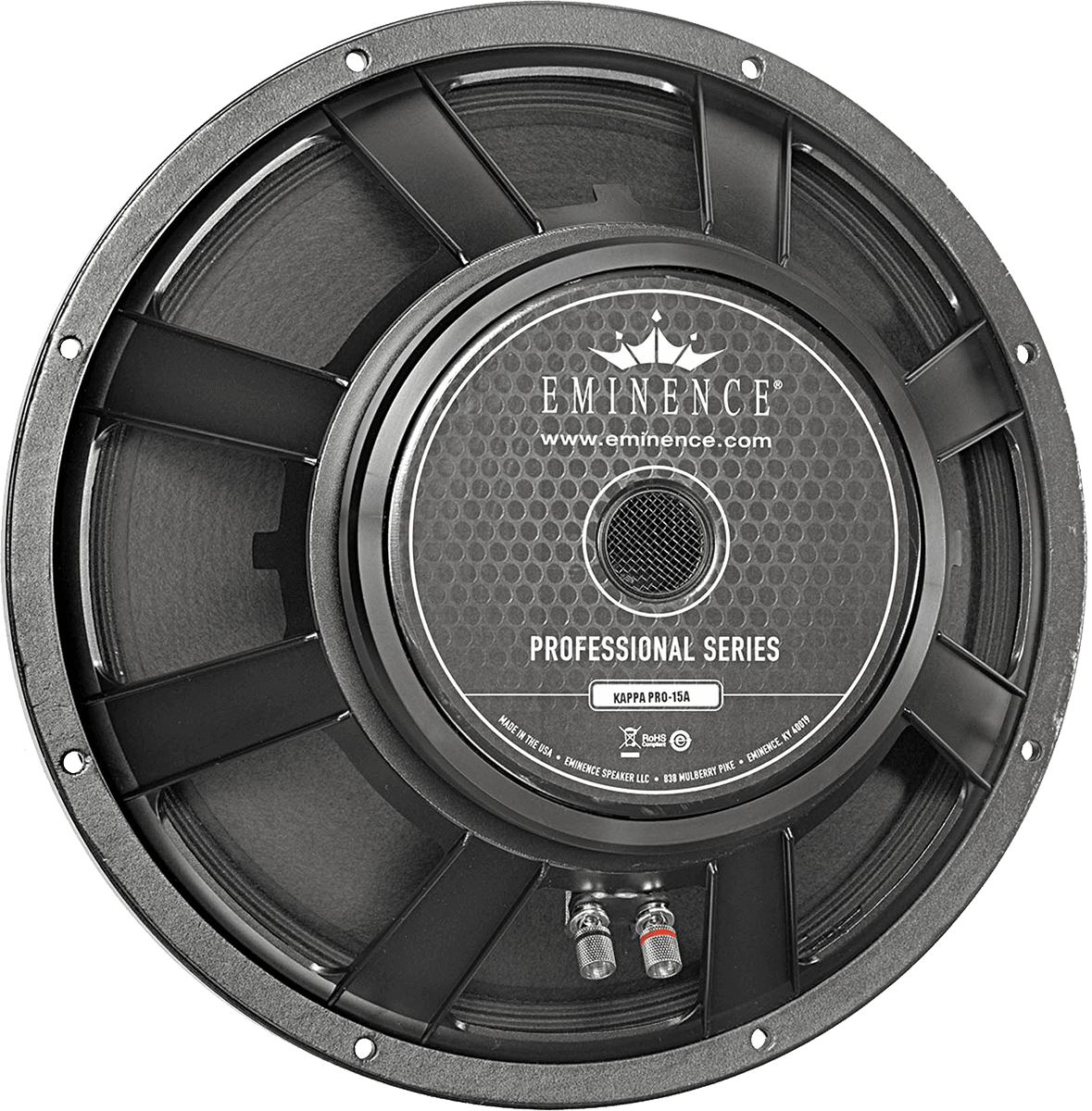

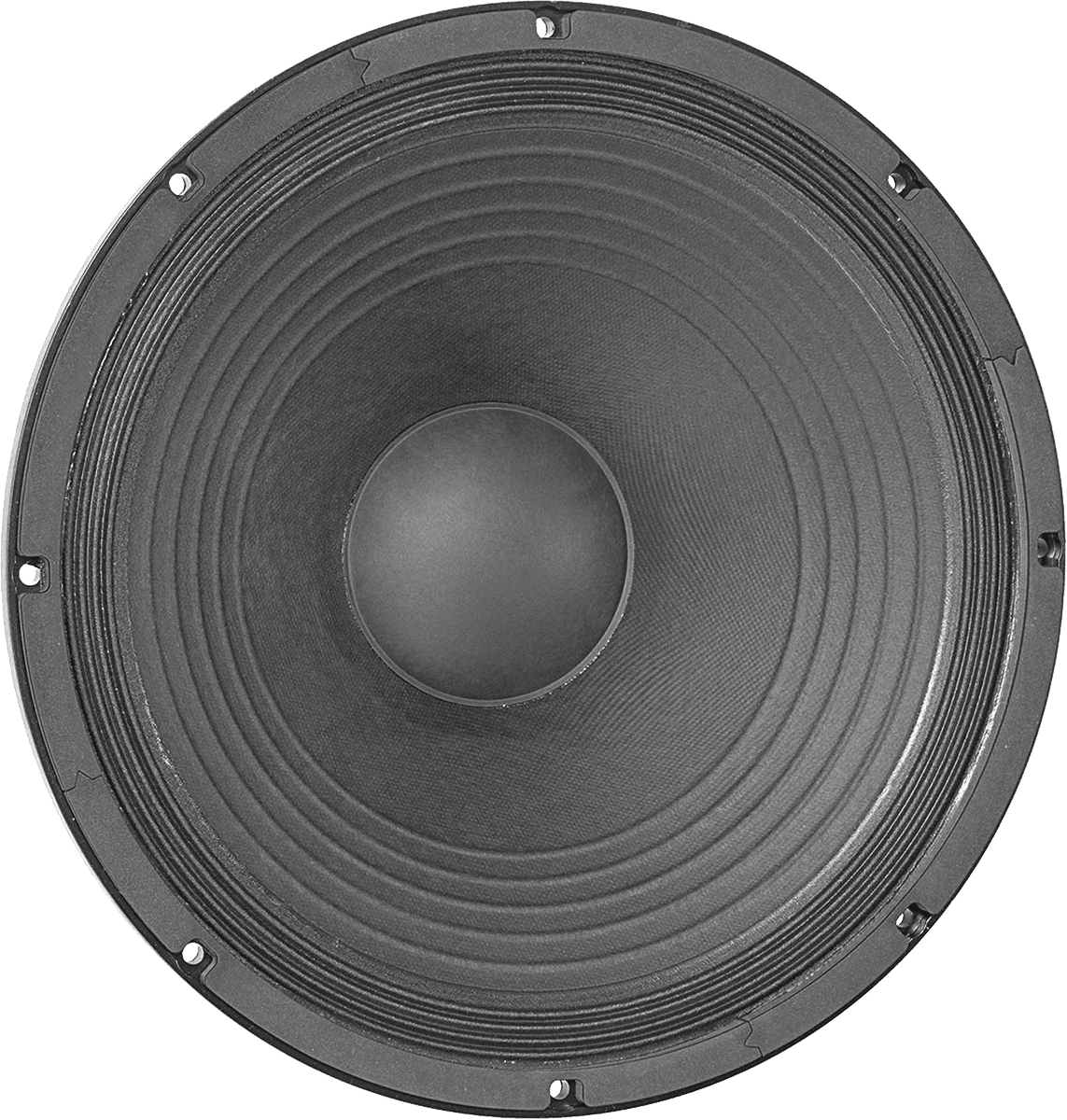

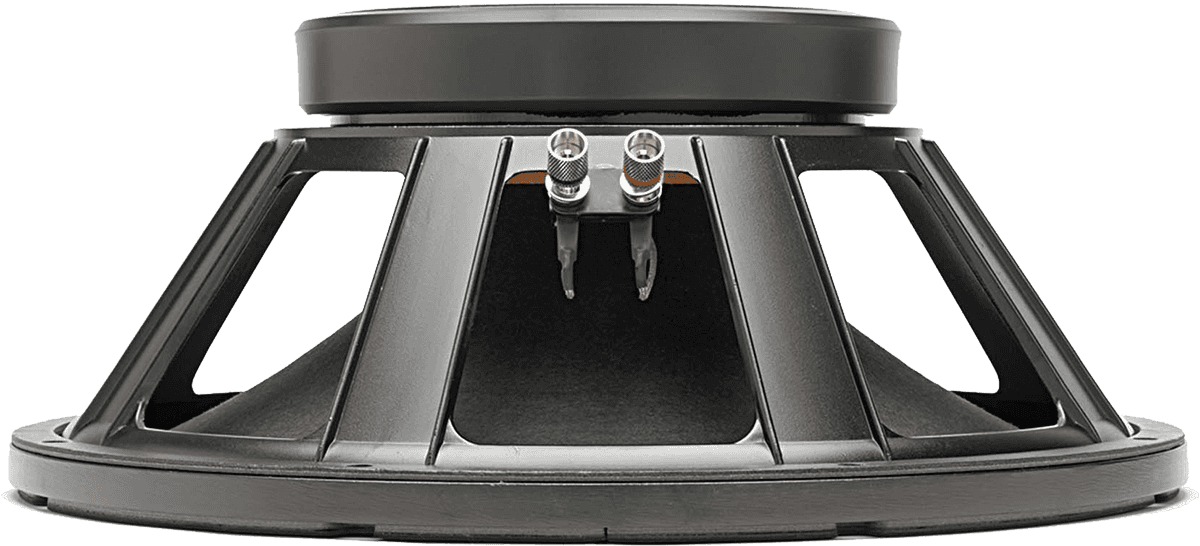

Eminence Kappa Pro-15A 8 Ohm

Produktinformationen "Eminence Kappa Pro-15A 8 Ohm"

Beschreibung Eminence Kappa Pro-15A 8 Ohm

Kappa Pro-15A - empfohlen für professionelles Audio im Bass/Mitten-Bereich in einem Bassreflexgehäuse. Auch für Bassgitarre geeignet.


SPECIFICATION Kappa Pro-15A
Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power

1000 W

Watts 500 W
Resonance 47 Hz
Usable Frequency Range 46 Hz - 4 kHz
Sensitivity* 101 dB
Magnet Weight 80 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm

THIELE & SMALL PARAMETERS Kappa Pro-15A

Resonant Frequency (fs) 47 Hz
DC Resistance (Re) 5.23 Ω
Coil Inductance (Le) 1.01m H
Mechanical Q (Qms) 8.01
Electromagnetic Q (Qes) 0.4
Total Q (Qts) 0.38
Compliance Equivalent Volume (Vas) 167.7 liters / 5.92 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 274 cc
Mechanical Compliance of Suspension (Cms) 0.16 mm/N
BL Product (BL) 16.6 T-M
Diaphragm Mass Inc. Airload (MMs) 72 grams
Efficiency Bandwidth Product (EBP) 118
Maximum Linear Excursion (Xmax) 3.2 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 13.2 mm
MOUNTING INFORMATION Kappa Pro-15A
Recommended Enclosure Volume
Sealed N/a
Vented 54-184 liters / 1.9-6.5 cu.ft.
Driver Volume Displaced 0.138 cu.ft. / 3.92 liters
Overall Diameter 15.32", 389.1 mm
Baffle Hole Diameter 14", 355.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.06", 153.9 mm
Net Weight 16.9 lbs, 7.67 kg
Shipping Weight 19.5 lbs, 8.85 kgs
MATERIALS OF CONSTRUCTION Kappa Pro-15A
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap


Eminence Kappa Pro-15A


DATENBLATT



Coaxial: NEIN
Größe: 15"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,36 - 0,40
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
