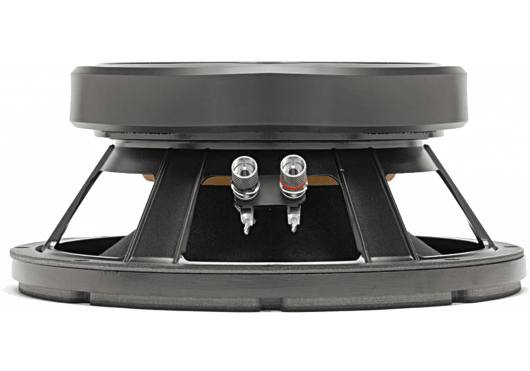

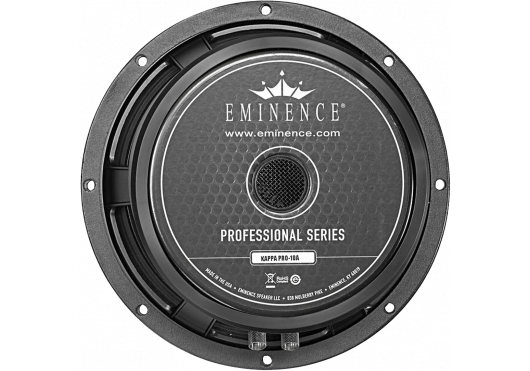

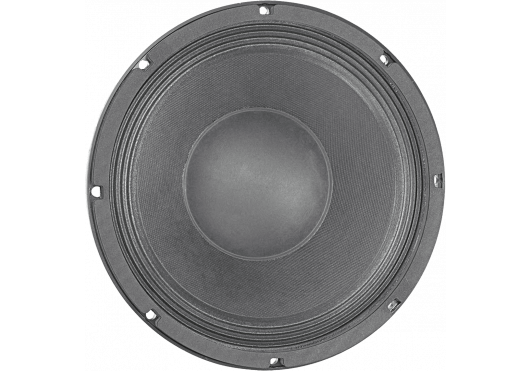

Eminence Kappa Pro-10A 8 Ohm

Produktinformationen "Eminence Kappa Pro-10A 8 Ohm"

Beschreibung Eminence Kappa Pro-10A 8 Ohm

Kappa Pro-10A - empfohlen für Pro-Audio in geschlossenen Mittenfrequenz Boxen, oder als Bass/Mitten Anwendung in Bassreflex- oder reinen Bass Gehäusen


SPECIFICATION Kappa Pro-10A
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power

1000 W

Watts 500 W
Resonance 46 Hz
Usable Frequency Range 102 Hz - 2 kHz
Sensitivity* 97 dB
Magnet Weight 80 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm

THIELE & SMALL PARAMETERS Kappa Pro-10A

Resonant Frequency (fs) 46 Hz
DC Resistance (Re) 6.5 Ω
Coil Inductance (Le) 1.15m H
Mechanical Q (Qms) 10.1
Electromagnetic Q (Qes) 0.2
Total Q (Qts) 0.2
Compliance Equivalent Volume (Vas) 52.2 liters / 1.84 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 110 cc
Mechanical Compliance of Suspension (Cms) 0.31 mm/N
BL Product (BL) 18.8 T-M
Diaphragm Mass Inc. Airload (MMs) 38 grams
Efficiency Bandwidth Product (EBP) 230
Maximum Linear Excursion (Xmax) 3.2 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 10.9 mm
MOUNTING INFORMATION Kappa Pro-10A
Recommended Enclosure Volume
Sealed 7-9.9 liters / 0.25-0.35 cu.ft.
Vented 12-28 liters / 0.43-1 cu.ft.
Driver Volume Displaced 0.061 cu.ft. / 1.72 liters
Overall Diameter 10.25", 260.4 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.27", 6.9mm
Mounting Holes B.C.D. 9.75", 247.7mm
Depth 4.33", 110 mm
Net Weight 15.3 lbs, 6.94 kg
Shipping Weight 16.4 lbs, 7.44 kgs
MATERIALS OF CONSTRUCTION Kappa Pro-10A
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap


Eminence Kappa Pro-10A


DATENBLATT



Coaxial: NEIN
Größe: 10"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,01 - 0,20
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
