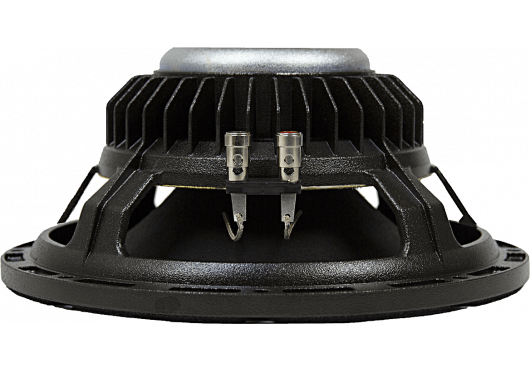

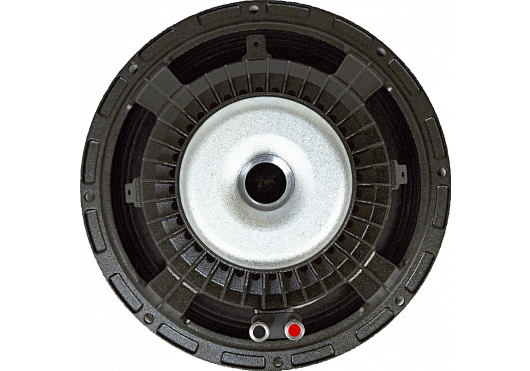

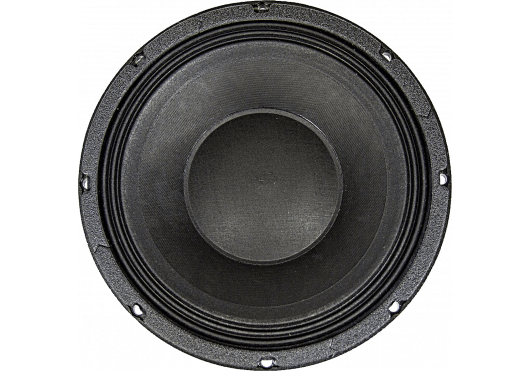

Eminence KL3010CX-8 8 Ohm

Produktinformationen "Eminence KL3010CX-8 8 Ohm"

Beschreibung Eminence KL3010CX-8 8 Ohm

KAPPALITE™ KL3010CX-8 - Hochleistungs-Koaxial Lautsprecher für Bassgitarre und Pro Audio - Anwendungen


SPECIFICATION KL3010CX-8
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power

800 W

Watts 400 W
Resonance 55 Hz
Usable Frequency Range 50 Hz - 3.7 kHz
Sensitivity* 92 dB
Magnet Weight 11 oz.
Gap Height 0.365", 9.27 mm
Voice Coil Diameter 3", 76 mm

THIELE & SMALL PARAMETERS KL3010CX-8

Resonant Frequency (fs) 52 Hz
DC Resistance (Re) 5.71 Ω
Coil Inductance (Le) 0.62m H
Mechanical Q (Qms) 5.87
Electromagnetic Q (Qes) 0.3
Total Q (Qts) 0.28
Compliance Equivalent Volume (Vas) 41.41 liters / 1.46 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 248 cc
Mechanical Compliance of Suspension (Cms) 0.21 mm/N
BL Product (BL) 16.8 T-M
Diaphragm Mass Inc. Airload (MMs) 45 grams
Efficiency Bandwidth Product (EBP) 175
Maximum Linear Excursion (Xmax) 6.58 mm
Surface Area of Cone (Sd) 376.9 cm2
Maximum Mechanical Limit (Xlim) 17.84 mm
MOUNTING INFORMATION KL3010CX-8
Recommended Enclosure Volume
Sealed N/a
Vented Acceptable
Driver Volume Displaced 0.037 cu.ft. / 1.06 liters
Overall Diameter 10.25", 260.35 mm
Baffle Hole Diameter 9.12", 231.65 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.29", 7.366mm
Mounting Holes B.C.D. 9.73", 247.14mm
Depth 4.5625", 115.887 mm
Net Weight 6.8 lbs, 3.08 kg
Shipping Weight 8.6 lbs, 3.9 kgs
MATERIALS OF CONSTRUCTION KL3010CX-8
Coil Construction Copper voice coil
Coil Former Fiberglass former
Magnet Composition Neodymium magnet
Core Details Tapered coax

Basket Materials Die-cast aluminum basket
Cone Composition Treated paper cone
Cone Edge Composition Sealed cloth edge
Dust Cap Composition Zurette dust cap


Eminence KL3010CX-8


DATENBLATT



Coaxial: JA
Größe: 10"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,26 - 0,30
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
