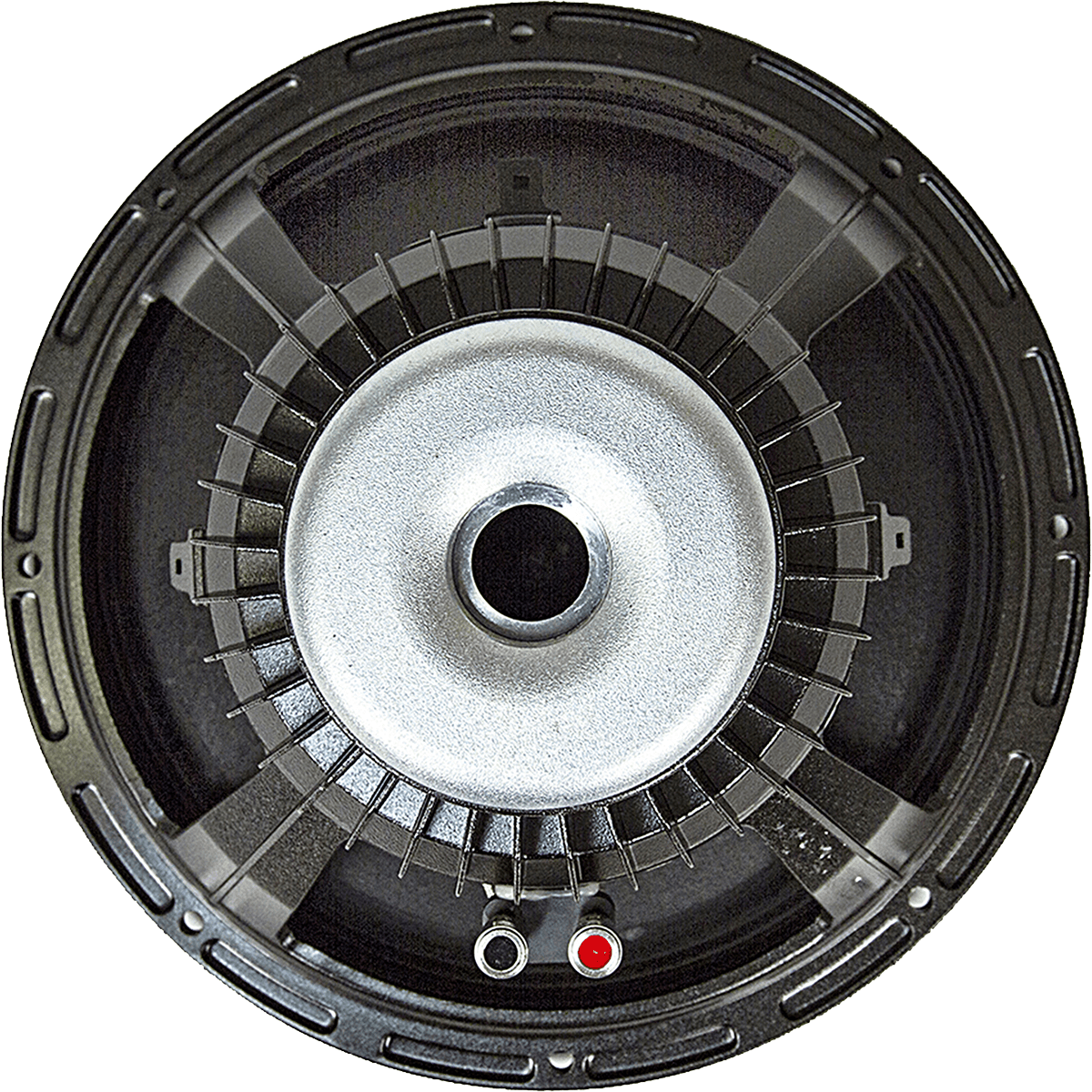

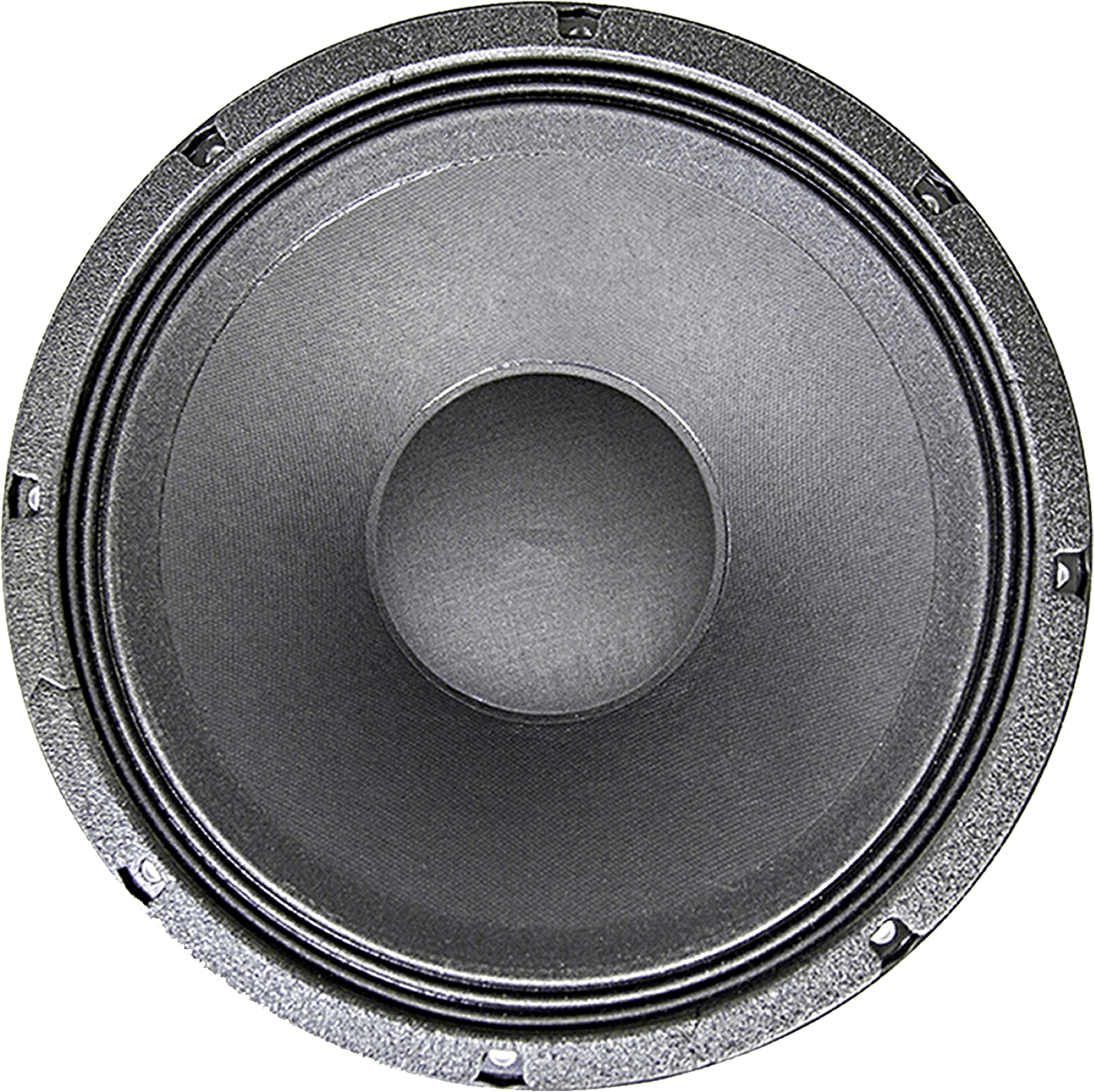

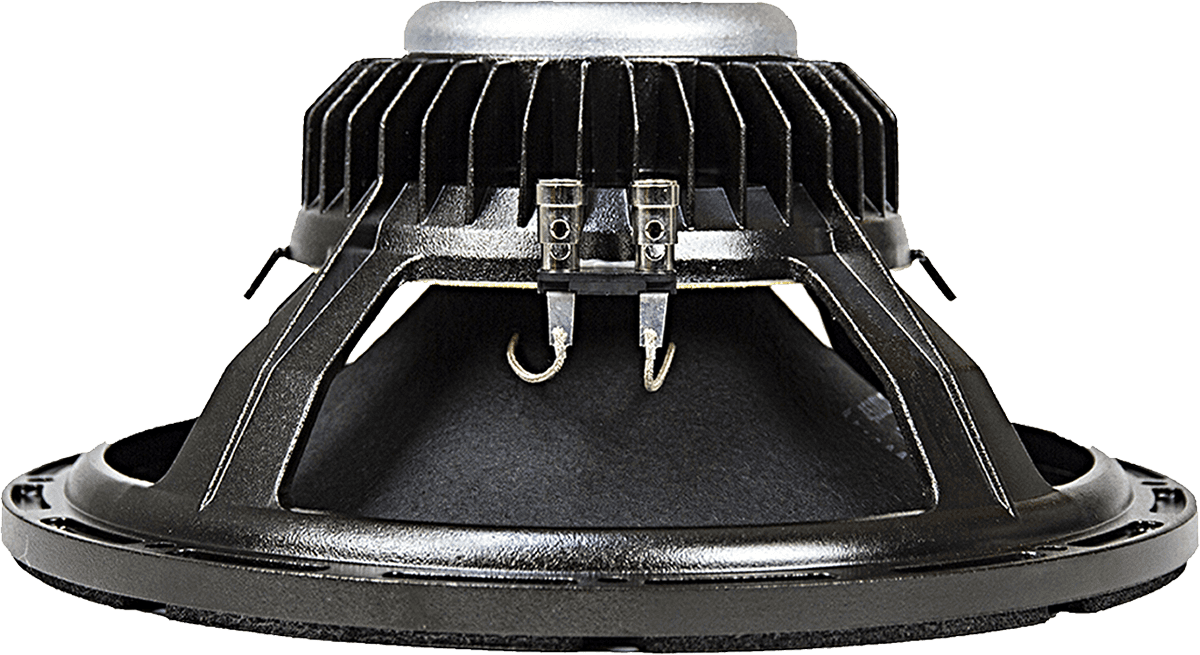

Eminence KAPPALITE™ KL3012CX-8 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
276,00 €*
|
| Bis 4 |
273,00 €*
|
| Bis 6 |
270,00 €*
|
| Ab 7 |
268,00 €*
|
Versandfertig in 1 Tag, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11801
Produktinformationen "Eminence KAPPALITE™ KL3012CX-8 8 Ohm"
Beschreibung Eminence KAPPALITE™ KL3012CX-8 8 Ohm
KAPPALITE™ KL3012CX-8 - Hochleistungs-Koaxial-Lautsprecher für Bassgitarre und Pro Audio - Anwendungen.
| SPECIFICATION KAPPALITE™ KL3012CX-8 | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power |
800 W |
| Watts | 400 W |
| Resonance | 42 Hz |
| Usable Frequency Range | 40 Hz - 3.2 kHz |
| Sensitivity* | 95.4 dB |
| Magnet Weight | 11 oz. |
| Gap Height | 0.365", 9.27 mm |
| Voice Coil Diameter | 3", 76 mm |
THIELE & SMALL PARAMETERS KAPPALITE™ KL3012CX-8 |
|
| Resonant Frequency (fs) | 42 Hz |
| DC Resistance (Re) | 5.7 Ω |
| Coil Inductance (Le) | 0.61m H |
| Mechanical Q (Qms) | 8.37 |
| Electromagnetic Q (Qes) | 0.31 |
| Total Q (Qts) | 0.3 |
| Compliance Equivalent Volume (Vas) | 111.5 liters / 3.94 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 407.41 cc |
| Mechanical Compliance of Suspension (Cms) | 0.27 mm/N |
| BL Product (BL) | 16.02 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 54 grams |
| Efficiency Bandwidth Product (EBP) | 134 |
| Maximum Linear Excursion (Xmax) | 7.47 mm |
| Surface Area of Cone (Sd) | 545.4 cm2 |
| Maximum Mechanical Limit (Xlim) | 17.84 mm |
| MOUNTING INFORMATION KAPPALITE™ KL3012CX-8 | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | Acceptable |
| Driver Volume Displaced | 0.054 cu.ft. / 1.53 liters |
| Overall Diameter | 12.38", 314.45 mm |
| Baffle Hole Diameter | 11.06", 280.92 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.28", 7.112mm |
| Mounting Holes B.C.D. | 11.62", 295.15mm |
| Depth | 5.625", 142.875 mm |
| Net Weight | 7.3 lbs, 3.31 kg |
| Shipping Weight | 9.3 lbs, 4.22 kgs |
| MATERIALS OF CONSTRUCTION KAPPALITE™ KL3012CX-8 | |
| Coil Construction | Copper voice coil |
| Coil Former | Fiberglass former |
| Magnet Composition | Neodymium magnet |
| Core Details | Tapered coax |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Treated paper cone |
| Cone Edge Composition | Sealed cloth edge |
| Dust Cap Composition | Zurette dust cap |
Eminence KAPPALITE™ KL3012CX-8
| Coaxial: | JA |
|---|---|
| Diaphragma / Dome: | Aluminium / Cotton / Sonstige |
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
| TSP Qts: | 0,251 - 0,30 |
| TSP X-MAX (mm): | 5,1 - 10,0 mm |
