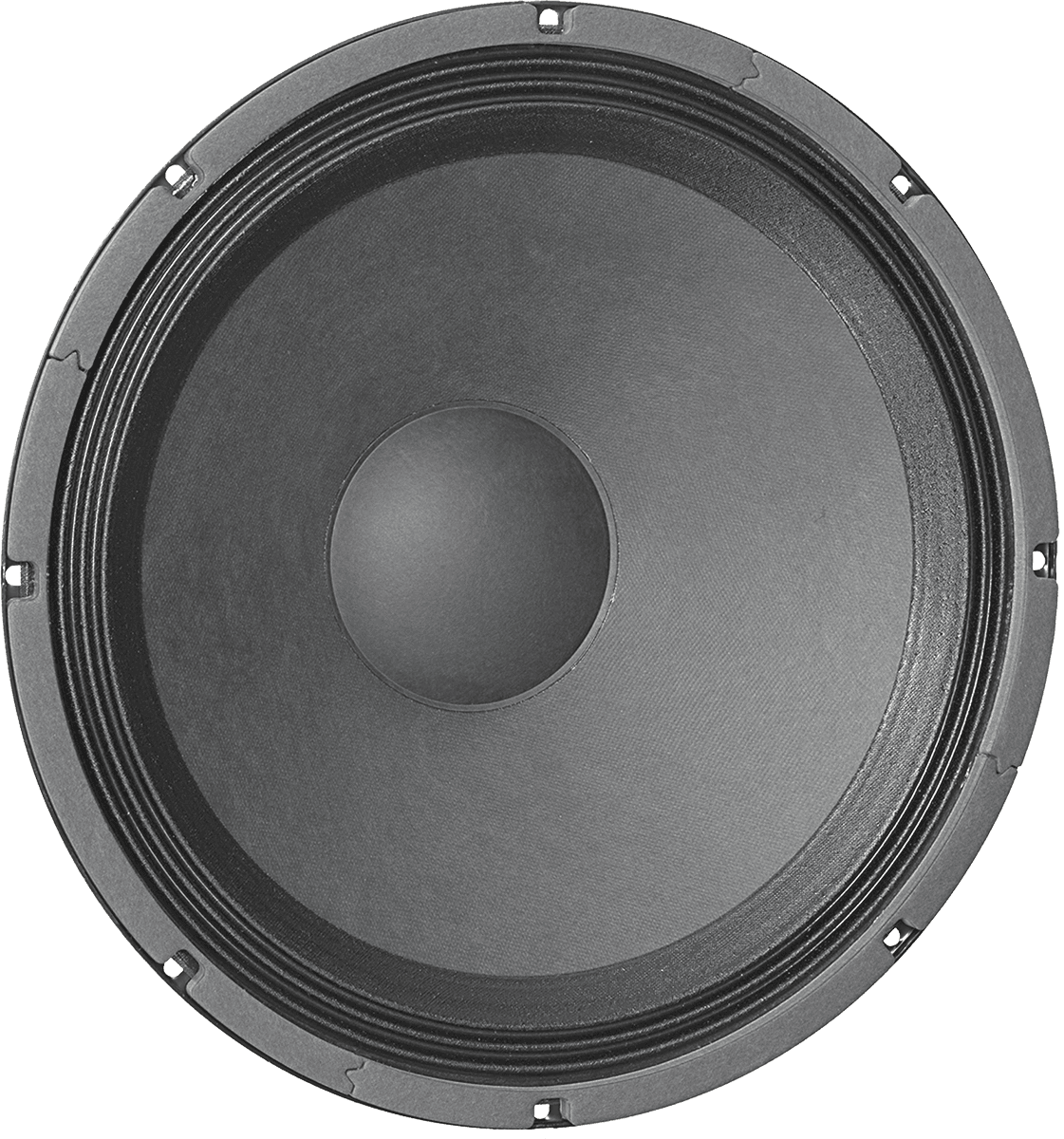

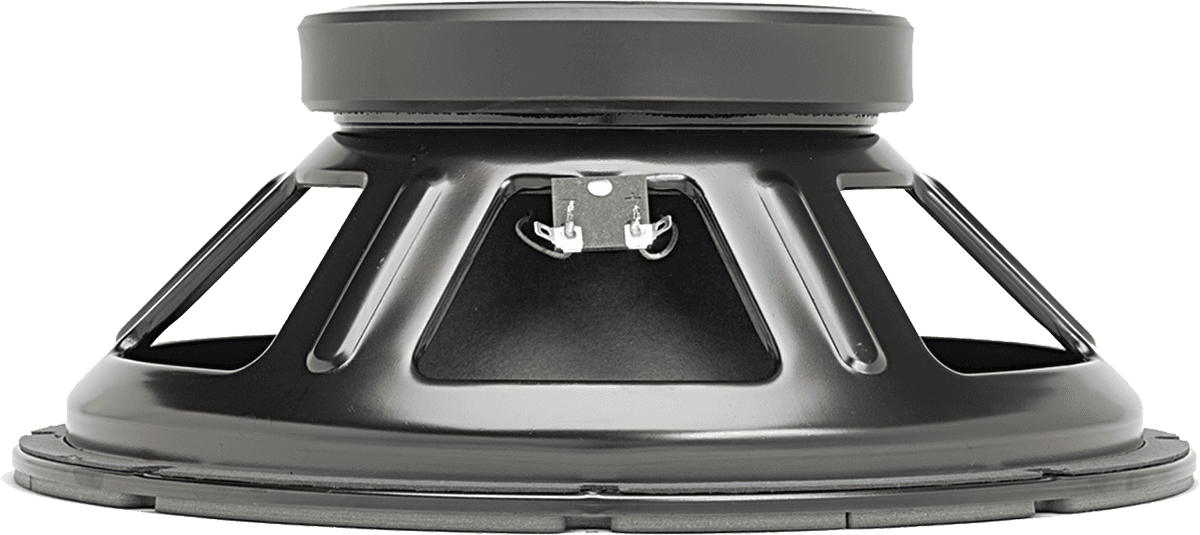

Eminence KAPPA 15C 4 Ohm

Produktinformationen "Eminence KAPPA 15C 4 Ohm"

Beschreibung Eminence KAPPA 15C 4 Ohm

KAPPA 15C - antriebsstarker Tieftöner - empfohlen für professionelles Audio in einem Bassreflex-Gehäuse für Bass- oder Bass-Mitten Anwendungen. Auch für Bassgitarre, Monitore oder Kick-Bässe geeignet.


SPECIFICATION KAPPA 15C
Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 4 Ω
Power Rating*
Program Power

900 W

Watts 450 W
Resonance 31 Hz
Usable Frequency Range 63 Hz - 2.8 kHz
Sensitivity* 98.1 dB
Magnet Weight 80 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm

THIELE & SMALL PARAMETERS KAPPA 15C

Resonant Frequency (fs) 31 Hz
DC Resistance (Re) 3.68 Ω
Coil Inductance (Le) 0.88m H
Mechanical Q (Qms) 10.14
Electromagnetic Q (Qes) 0.25
Total Q (Qts) 0.25
Compliance Equivalent Volume (Vas) 329.9 liters / 11.65 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 206 cc
Mechanical Compliance of Suspension (Cms) 0.35 mm/N
BL Product (BL) 14.7 T-M
Diaphragm Mass Inc. Airload (MMs) 77 grams
Efficiency Bandwidth Product (EBP) 124
Maximum Linear Excursion (Xmax) 2.4 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 11.6 mm
MOUNTING INFORMATION KAPPA 15C
Recommended Enclosure Volume
Sealed N/a
Vented 40-79 liters / 1.4-2.8 cu.ft.
Driver Volume Displaced 0.138 cu.ft. / 3.92 liters
Overall Diameter 15.16", 385.1 mm
Baffle Hole Diameter 13.87", 352.3 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.13", 155.7 mm
Net Weight 17.6 lbs, 7.98 kg
Shipping Weight 19.8 lbs, 8.98 kgs
MATERIALS OF CONSTRUCTION KAPPA 15C
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Sol


Eminence KAPPA 15C


DATENBLATT



Coaxial: NEIN
Größe: 15"
Impedanz: 4 Ohm
Magnet: Ferrit
Qts: 0,21 - 0,25
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
