Eminence KAPPA-12A 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
179,00 €*
|
| Bis 4 |
177,00 €*
|
| Bis 6 |
175,00 €*
|
| Ab 7 |
173,00 €*
|
Versandfertig in 1 Tag, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11805
Produktinformationen "Eminence KAPPA-12A 8 Ohm"

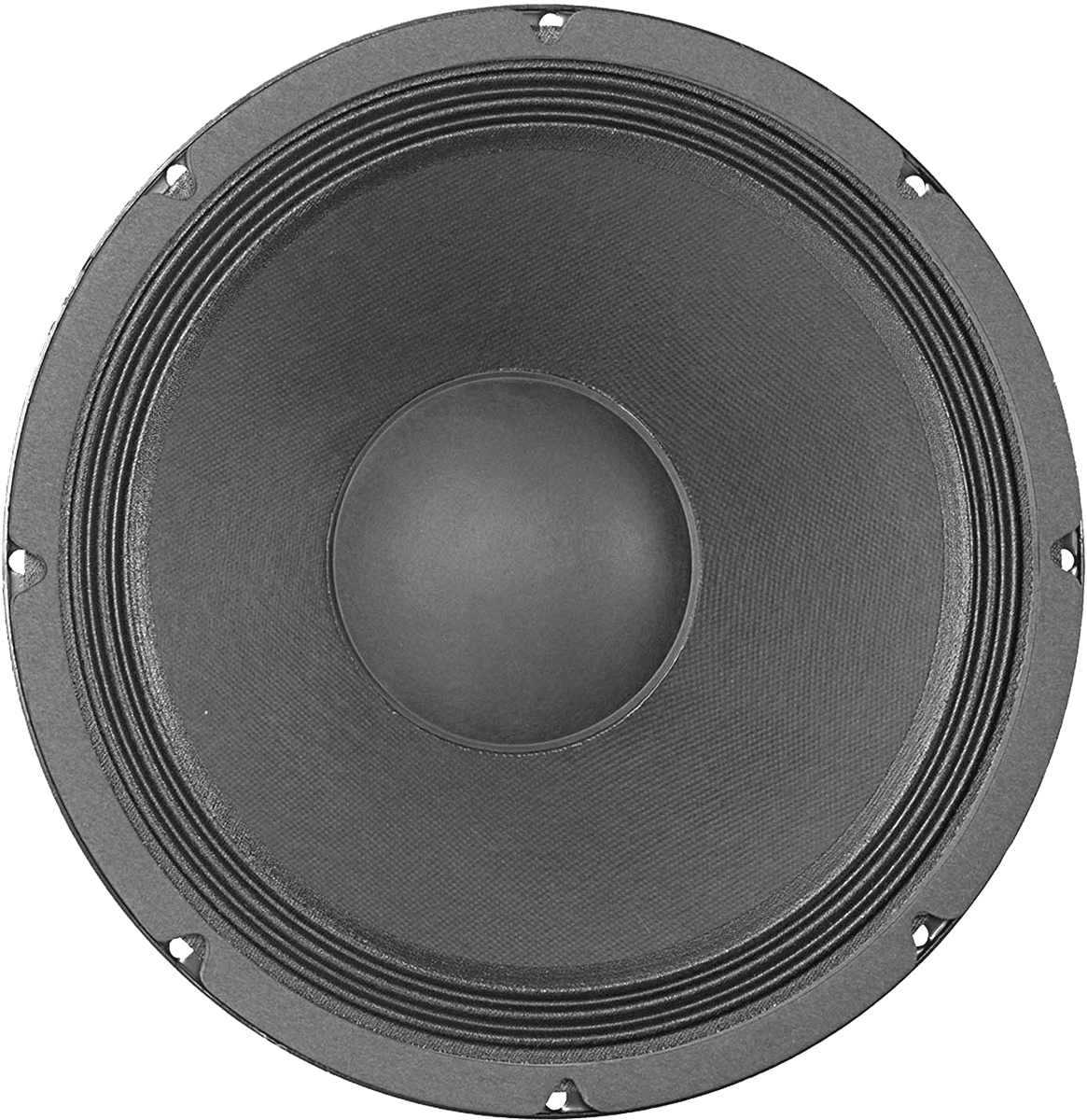

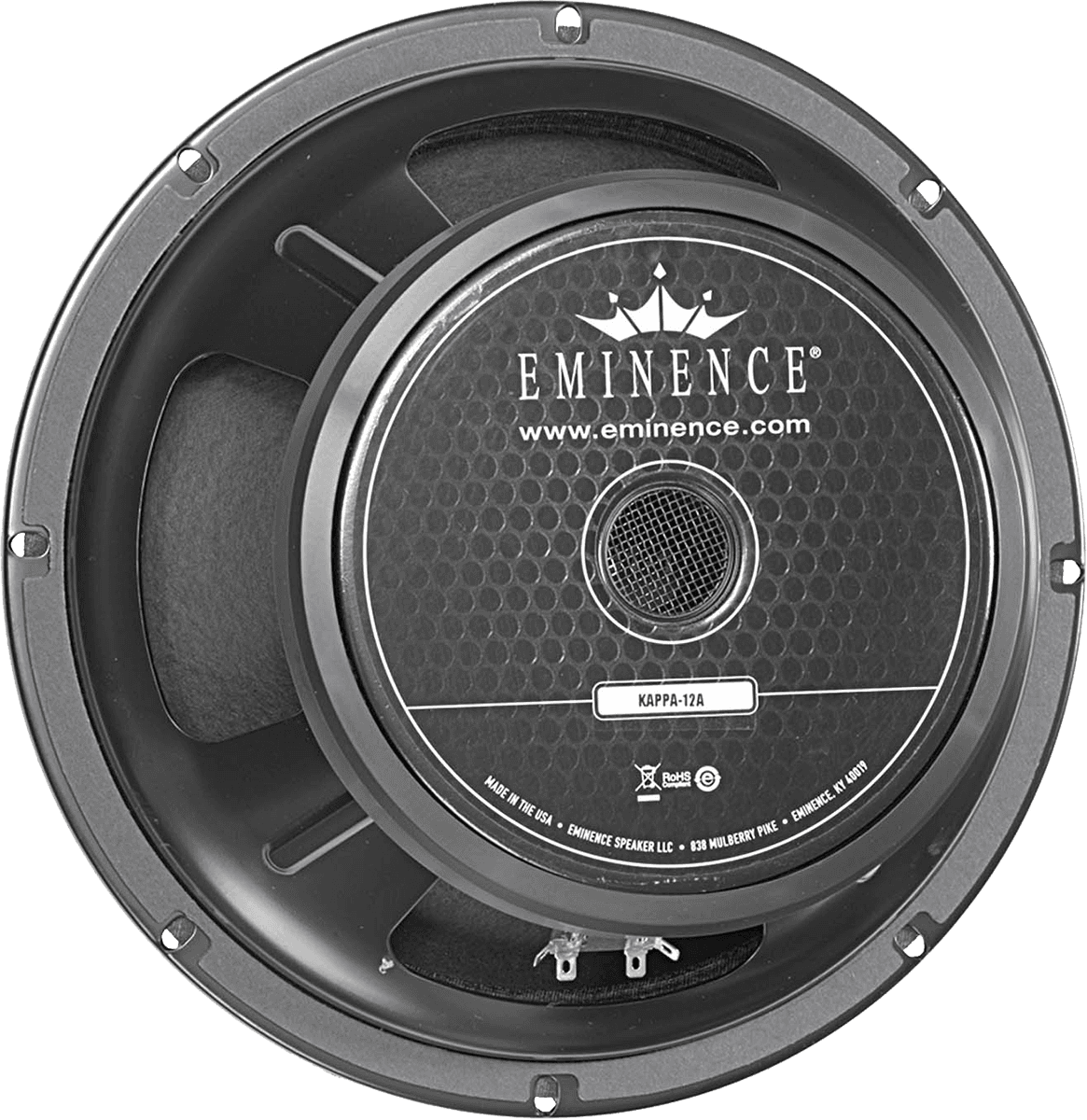

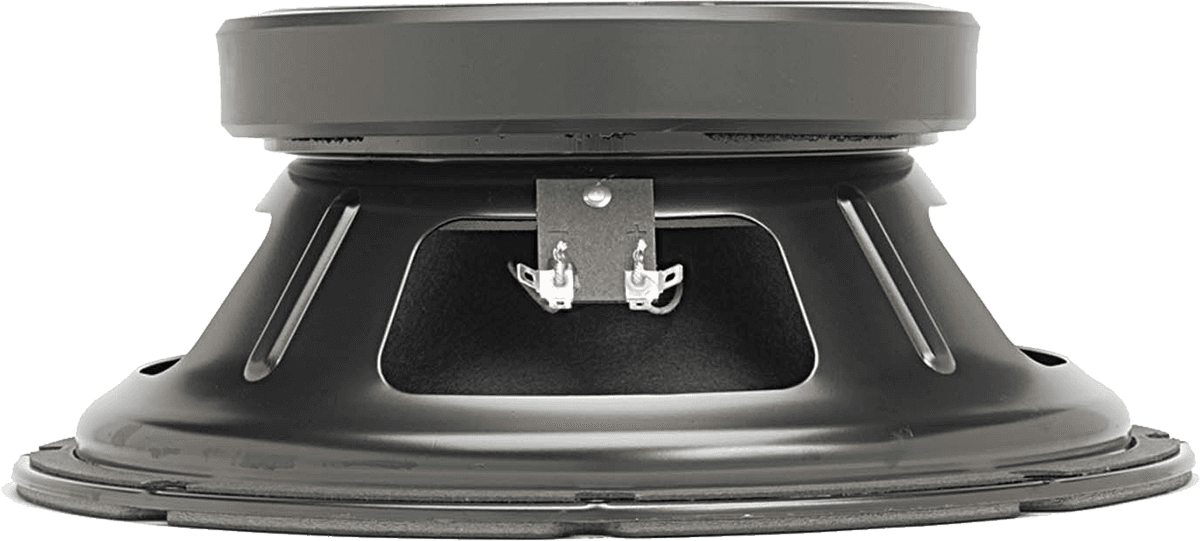

Beschreibung Eminence KAPPA-12A 8 Ohm
KAPPA-12A - empfohlen für professionelles Audio als Mitten/Hochton- oder Fullrange- Speaker in einem Bassreflex- Gehäuse.
| SPECIFICATION KAPPA-12A | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power |
900 W |
| Watts | 450 W |
| Resonance | 45 Hz |
| Usable Frequency Range | 62 Hz - 4.2 kHz |
| Sensitivity* | 99.3 dB |
| Magnet Weight | 80 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 3", 76 mm |
THIELE & SMALL PARAMETERS KAPPA-12A |
|
| Resonant Frequency (fs) | 45 Hz |
| DC Resistance (Re) | 5.41 Ω |
| Coil Inductance (Le) | 0.77m H |
| Mechanical Q (Qms) | 7.76 |
| Electromagnetic Q (Qes) | 0.28 |
| Total Q (Qts) | 0.27 |
| Compliance Equivalent Volume (Vas) | 112.1 liters / 3.96 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 166 cc |
| Mechanical Compliance of Suspension (Cms) | 0.3 mm/N |
| BL Product (BL) | 15.2 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 42 grams |
| Efficiency Bandwidth Product (EBP) | 161 |
| Maximum Linear Excursion (Xmax) | 3.2 mm |
| Surface Area of Cone (Sd) | 519.5 cm2 |
| Maximum Mechanical Limit (Xlim) | 11.5 mm |
| MOUNTING INFORMATION KAPPA-12A | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | 34-62 liters / 1.2-2.2 cu.ft. |
| Driver Volume Displaced | 0.09 cu.ft. / 2.55 liters |
| Overall Diameter | 12.26", 311.4 mm |
| Baffle Hole Diameter | 11", 279.4 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.71", 297.4mm |
| Depth | 5.63", 143 mm |
| Net Weight | 14.9 lbs, 6.76 kg |
| Shipping Weight | 17.9 lbs, 8.12 kgs |
| MATERIALS OF CONSTRUCTION KAPPA-12A | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
Eminence KAPPA-12A
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
| TSP Qts: | 0,251 - 0,30 |
| TSP X-MAX (mm): | 0,1 - 5,0 mm |
