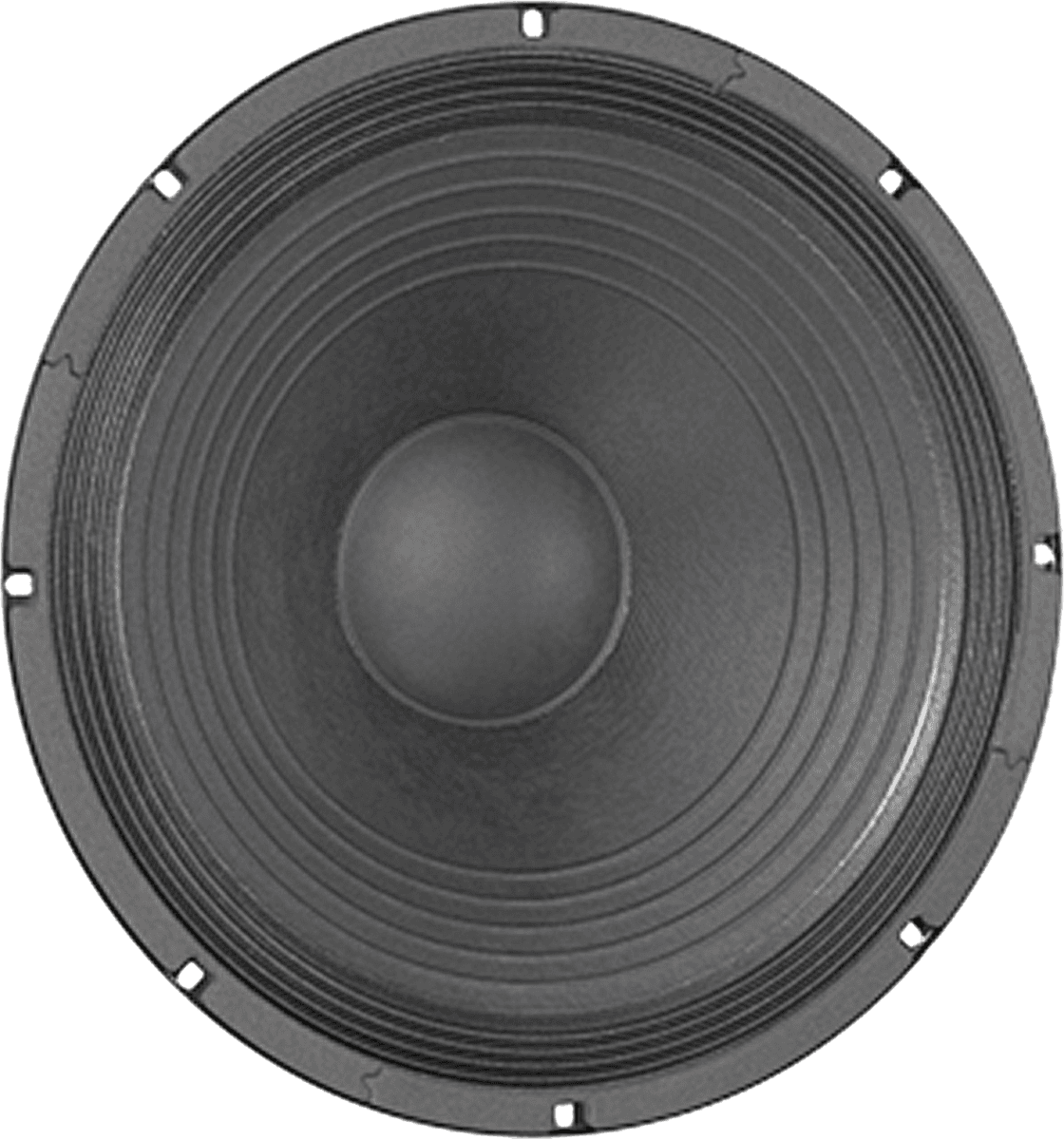

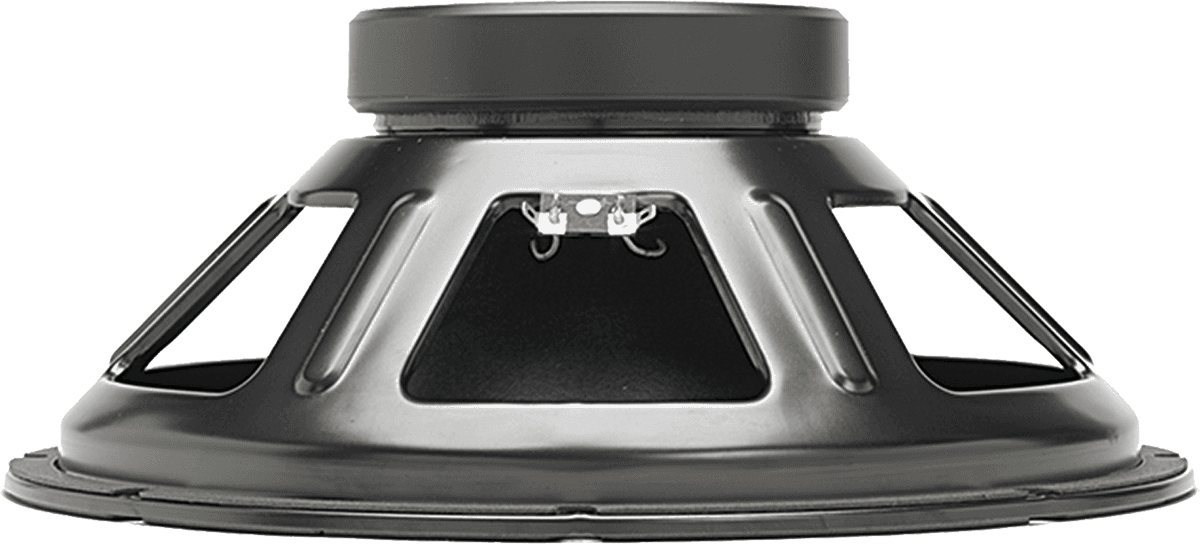

Eminence DELTA 15B 8 Ohm

Produktinformationen "Eminence DELTA 15B 8 Ohm"

Beschreibung Eminence DELTA 15B 8 Ohm

DELTA 15B - empfohlen für professionelles Audio als Bass/Mitten-Lautsprecher in Gesangs Monitoren oder in einem geschlossenen Gehäuse. Auch als Bass/Mitten-Speaker oder Tieftöner in Bassreflex Gehäusen geeignet.


SPECIFICATION DELTA 15B
Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power

800 W

Watts 400 W
Resonance 45 Hz
Usable Frequency Range 64 Hz - 4 kHz
Sensitivity* 100 dB
Magnet Weight 56 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 2.5", 64 mm

THIELE & SMALL PARAMETERS DELTA 15B

Resonant Frequency (fs) 45 Hz
DC Resistance (Re) 11.3 Ω
Coil Inductance (Le) 1.35m H
Mechanical Q (Qms) 6.54
Electromagnetic Q (Qes) 0.67
Total Q (Qts) 0.61
Compliance Equivalent Volume (Vas) 204 liters / 7.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 137 cc
Mechanical Compliance of Suspension (Cms) 0.19 mm/N
BL Product (BL) 17.6 T-M
Diaphragm Mass Inc. Airload (MMs) 64 grams
Efficiency Bandwidth Product (EBP) 68
Maximum Linear Excursion (Xmax) 1.6 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 11.1 mm
MOUNTING INFORMATION DELTA 15B
Recommended Enclosure Volume
Sealed 31-42.5 liters / 1.09-1.5 cu.ft.
Vented 81.8-87.8 liters / 2.89-3.1 cu.ft.
Driver Volume Displaced 0.128 cu.ft. / 3.62 liters
Overall Diameter 15.15", 384.8 mm
Baffle Hole Diameter 13.87", 352.3 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.05", 153.7 mm
Net Weight 12.3 lbs, 5.58 kg
Shipping Weight 14.3 lbs, 6.49 kgs
MATERIALS OF CONSTRUCTION DELTA 15B
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap


Eminence DELTA 15B


DATENBLATT



Coaxial: NEIN
Größe: 15"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,61 - 0,99
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
