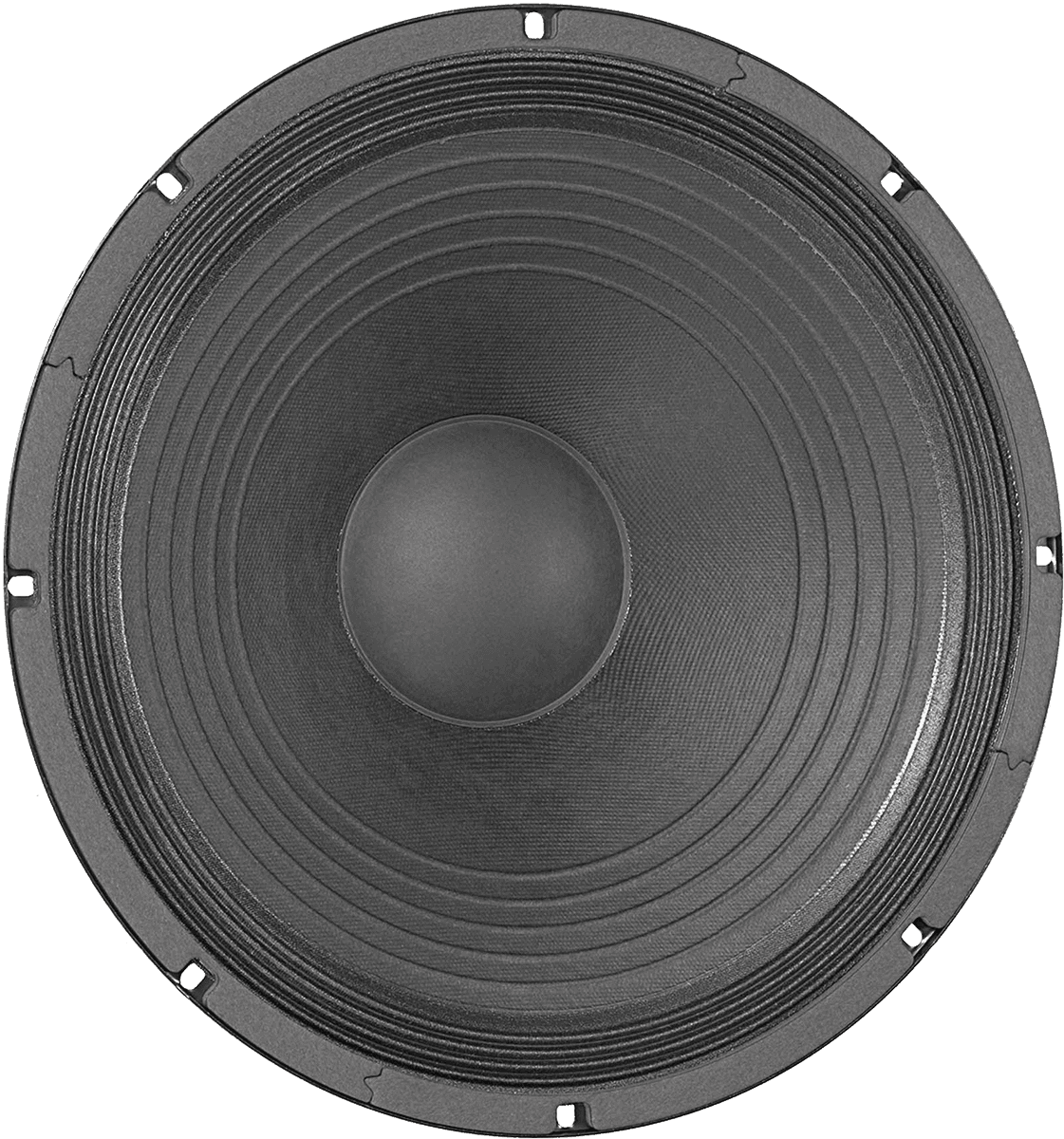

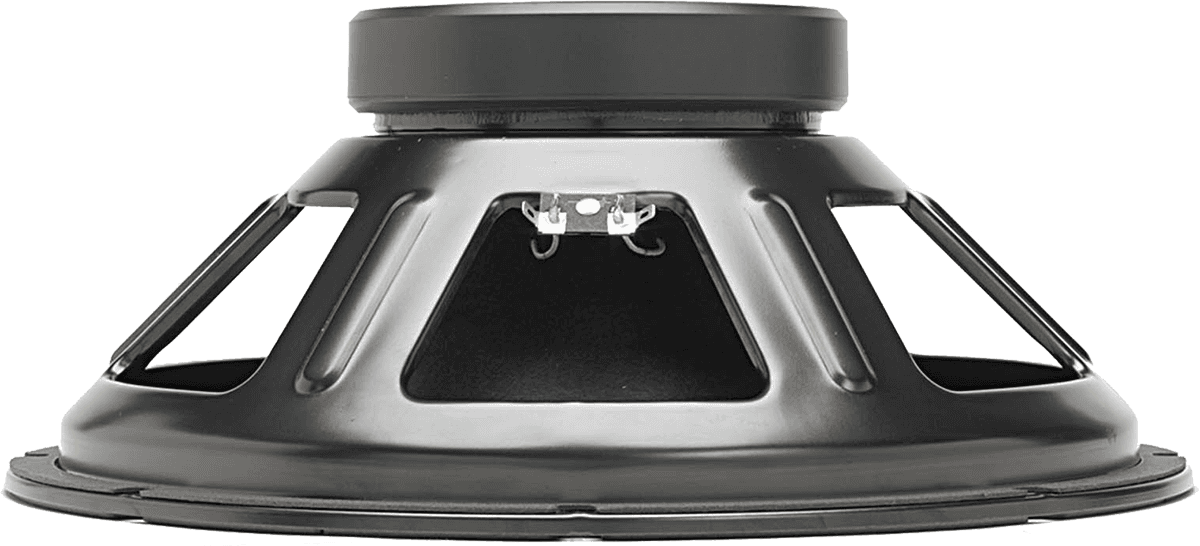

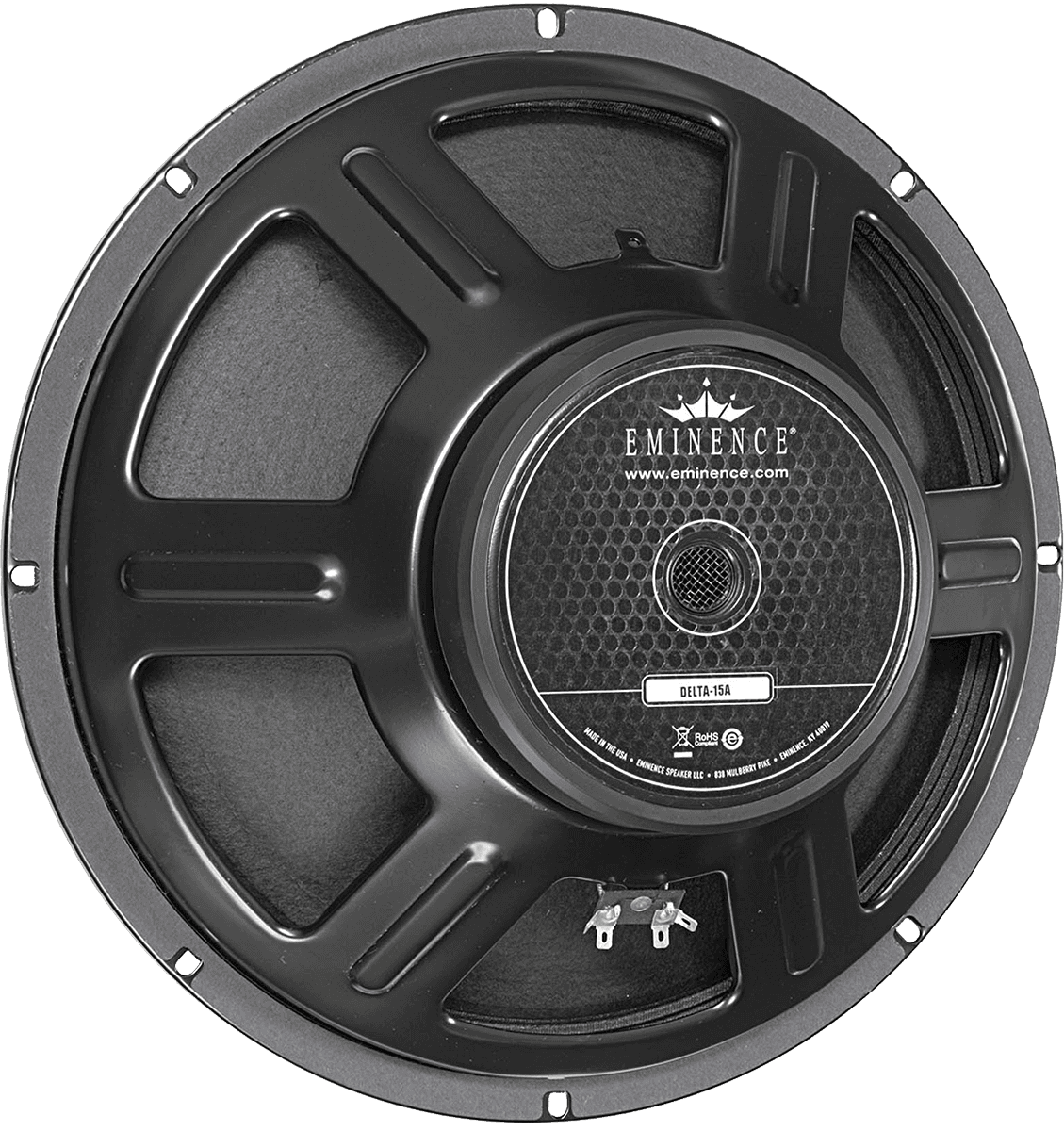

Eminence DELTA-15A 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
163,00 €*
|
| Bis 4 |
161,50 €*
|
| Bis 6 |
160,00 €*
|
| Ab 7 |
158,50 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11795
Produktinformationen "Eminence DELTA-15A 8 Ohm"
Beschreibung Eminence DELTA-15A 8 Ohm
DELTA-15A - empfohlen für professionelles Audio als Bass/Mitten - Speaker oder Gesangsmonitore im geschlossenen Gehäuse. Auch als Bass/Mitten- Speaker oder Tieftöner in Bassreflex- Gehäusen geeignet.
| SPECIFICATION DELTA-15A | |
| Nominal Basket Diameter | 15", 381 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power |
800 W |
| Watts | 400 W |
| Resonance | 40 Hz |
| Usable Frequency Range | 48 Hz - 4 kHz |
| Sensitivity* | 100 dB |
| Magnet Weight | 56 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 2.5", 64 mm |
THIELE & SMALL PARAMETERS DELTA-15A |
|
| Resonant Frequency (fs) | 40 Hz |
| DC Resistance (Re) | 6.3 Ω |
| Coil Inductance (Le) | 0.64m H |
| Mechanical Q (Qms) | 8.05 |
| Electromagnetic Q (Qes) | 0.57 |
| Total Q (Qts) | 0.53 |
| Compliance Equivalent Volume (Vas) | 270.7 liters / 9.56 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 233 cc |
| Mechanical Compliance of Suspension (Cms) | 0.26 mm/N |
| BL Product (BL) | 13.2 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 62 grams |
| Efficiency Bandwidth Product (EBP) | 70 |
| Maximum Linear Excursion (Xmax) | 2.7 mm |
| Surface Area of Cone (Sd) | 864.6 cm2 |
| Maximum Mechanical Limit (Xlim) | 11.1 mm |
| MOUNTING INFORMATION DELTA-15A | |
| Recommended Enclosure Volume | |
| Sealed | 37-42.5 liters / 1.3-1.5 cu.ft. |
| Vented | 82-161.4 liters / 2.9-5.7 cu.ft. |
| Driver Volume Displaced | 0.128 cu.ft. / 3.62 liters |
| Overall Diameter | 15.15", 384.8 mm |
| Baffle Hole Diameter | 13.87", 352.3 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 14.56", 369.8mm |
| Depth | 6.05", 153.7 mm |
| Net Weight | 12.3 lbs, 5.58 kg |
| Shipping Weight | 14.4 lbs, 6.53 kgs |
| MATERIALS OF CONSTRUCTION DELTA-15A | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
Eminence DELTA-15A
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,51 - 0,60 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
