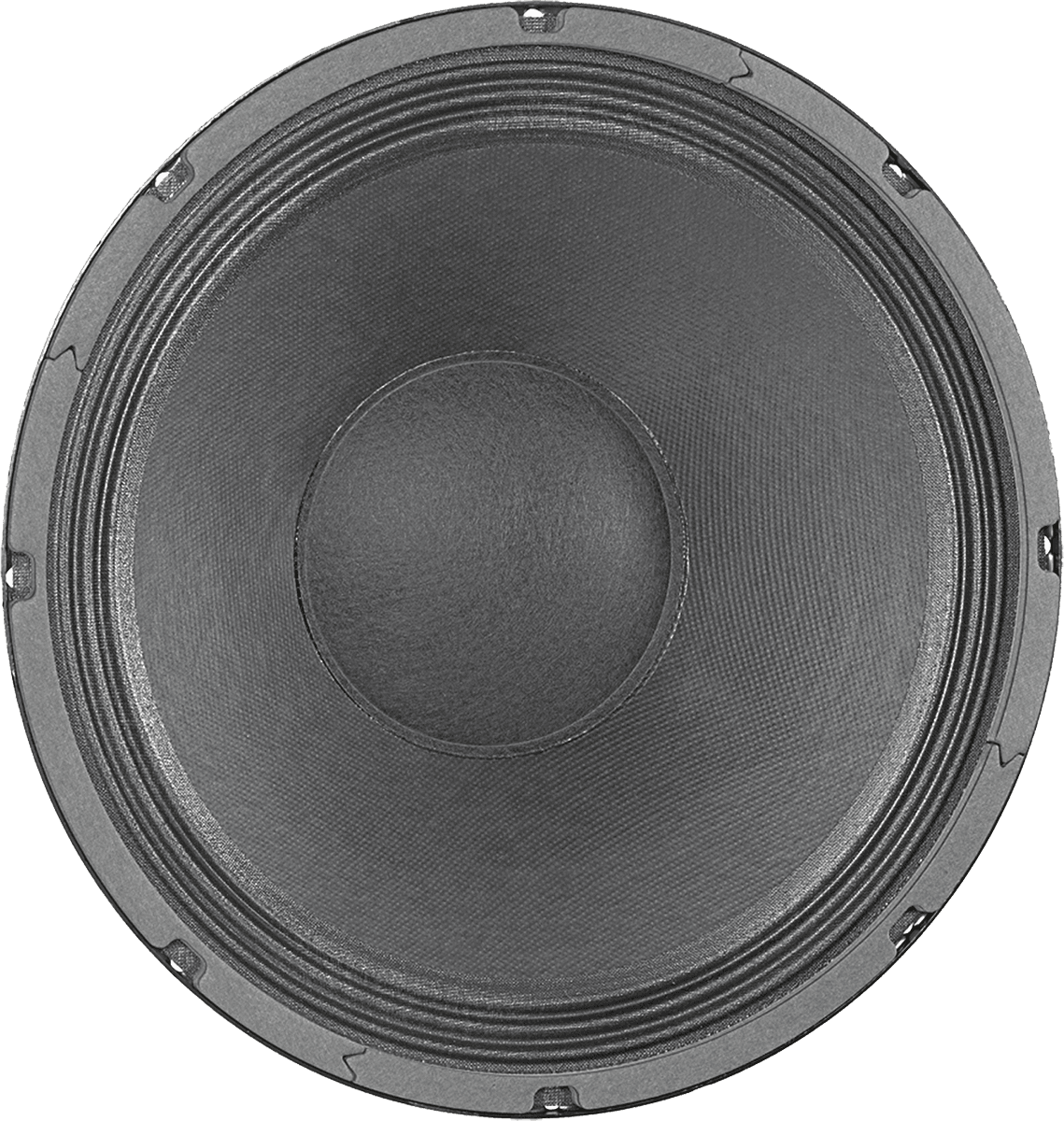

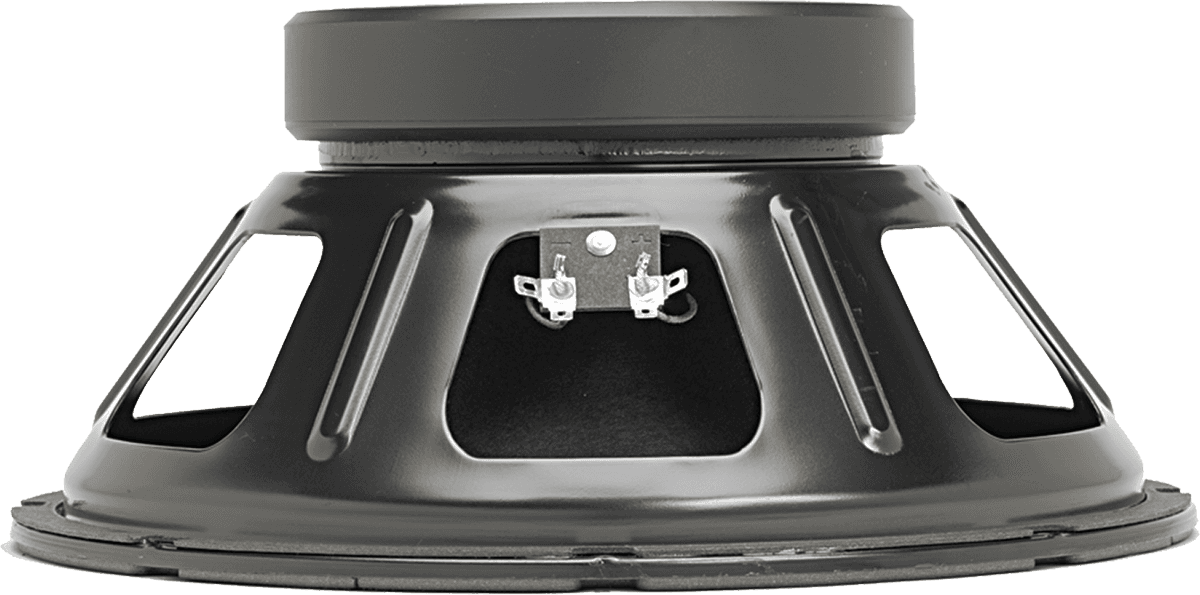

Eminence DELTA 12B 16 Ohm

Produktinformationen "Eminence DELTA 12B 16 Ohm"

Beschreibung Eminence DELTA 12B 16 Ohm

DELTA 12B - empfohlen für professionelles Audio als Bass/Mitten- Speaker oder Tieftöner (mit Hochpassfilter) in Bassreflex- Gehäusen.


PECIFICATION DELTA 12B
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power

800 W

Watts 400 W
Resonance 58 Hz
Usable Frequency Range 65 Hz - 5 kHz
Sensitivity* 98.3 dB
Magnet Weight 56 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 2.5", 64 mm

THIELE & SMALL PARAMETERS DELTA 12B

Resonant Frequency (fs) 58 Hz
DC Resistance (Re) 11.4 Ω
Coil Inductance (Le) 0.77m H
Mechanical Q (Qms) 7.04
Electromagnetic Q (Qes) 0.52
Total Q (Qts) 0.48
Compliance Equivalent Volume (Vas) 87 liters / 3.07 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 140 cc
Mechanical Compliance of Suspension (Cms) 0.23 mm/N
BL Product (BL) 16 T-M
Diaphragm Mass Inc. Airload (MMs) 32 grams
Efficiency Bandwidth Product (EBP) 112
Maximum Linear Excursion (Xmax) 2.7 mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) 9 mm
MOUNTING INFORMATION DELTA 12B
Recommended Enclosure Volume
Sealed 15.6-18.4 liters / 0.55-0.65 cu.ft.
Vented 34-68 liters / 1.2-2.4 cu.ft.
Driver Volume Displaced 0.079 cu.ft. / 2.25 liters
Overall Diameter 12.03", 305.6 mm
Baffle Hole Diameter 11.07", 281.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.59", 294.4mm
Depth 5.35", 135.9 mm
Net Weight 11.4 lbs, 5.17 kg
Shipping Weight 13.5 lbs, 6.12 kgs
MATERIALS OF CONSTRUCTION DELTA 12B
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition felt dust cap


Eminence DELTA 12B


DATENBLATT



Coaxial: NEIN
Größe: 12"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,41 - 0,50
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
