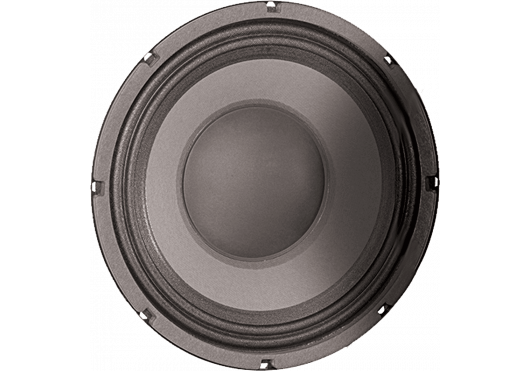

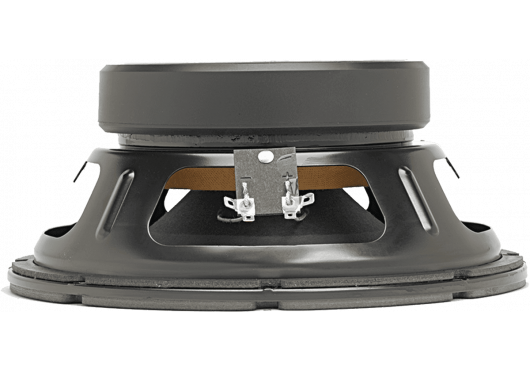

Eminence DELTA-10B 16 Ohm

Produktinformationen "Eminence DELTA-10B 16 Ohm "

Beschreibung Eminence DELTA-10B 16 Ohm

DELTA-10B - empfohlen für professionelle Audio- und Bassgitarrenanwendungen als Bass/Mitten Treiber oder Midrange Speaker in Bassreflex- Gehäusen, Monitoren, Satelliten und Mehrwegsystemen.


SPECIFICATION DELTA-10B
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power

700 W

Watts 350 W
Resonance 65 Hz
Usable Frequency Range 71 Hz - 3.7 kHz
Sensitivity* 98 dB
Magnet Weight 56 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 2.5", 64 mm

THIELE & SMALL PARAMETERS DELTA-10B

Resonant Frequency (fs) 65 Hz
DC Resistance (Re) 11.6 Ω
Coil Inductance (Le) 0.79m H
Mechanical Q (Qms) 8.34
Electromagnetic Q (Qes) 0.35
Total Q (Qts) 0.33
Compliance Equivalent Volume (Vas) 36 liters / 1.27 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 62 cc
Mechanical Compliance of Suspension (Cms) 0.21 mm/N
BL Product (BL) 19.5 T-M
Diaphragm Mass Inc. Airload (MMs) 28 grams
Efficiency Bandwidth Product (EBP) 186
Maximum Linear Excursion (Xmax) 3.5 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 9 mm
MOUNTING INFORMATION DELTA-10B
Recommended Enclosure Volume
Sealed 9.9-12.7 liters / 0.35-0.45 cu.ft.
Vented 10.8-34 liters / 0.38-1.2 cu.ft.
Driver Volume Displaced 0.05 cu.ft. / 1.42 liters
Overall Diameter 10.09", 256.3 mm
Baffle Hole Diameter 9.18", 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 9.66", 245.4mm
Depth 4.25", 108 mm
Net Weight 10.8 lbs, 4.9 kg
Shipping Weight 12 lbs, 5.44 kgs
MATERIALS OF CONSTRUCTION DELTA-10B
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap


Eminence DELTA-10B


DATENBLATT



Coaxial: NEIN
Größe: 10"
Impedanz: 16 Ohm
Magnet: Ferrit
Qts: 0,31 - 0,35
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
