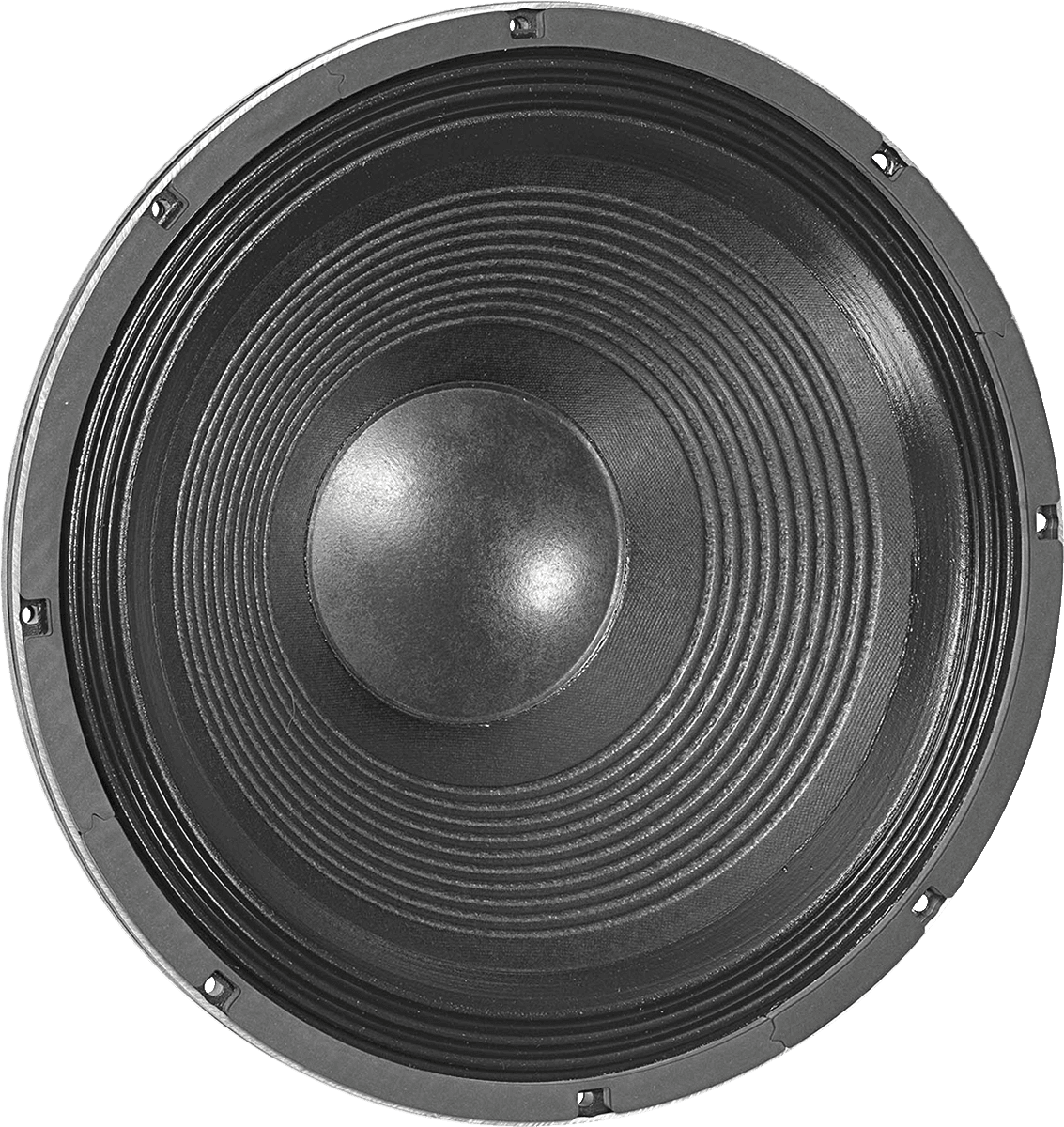

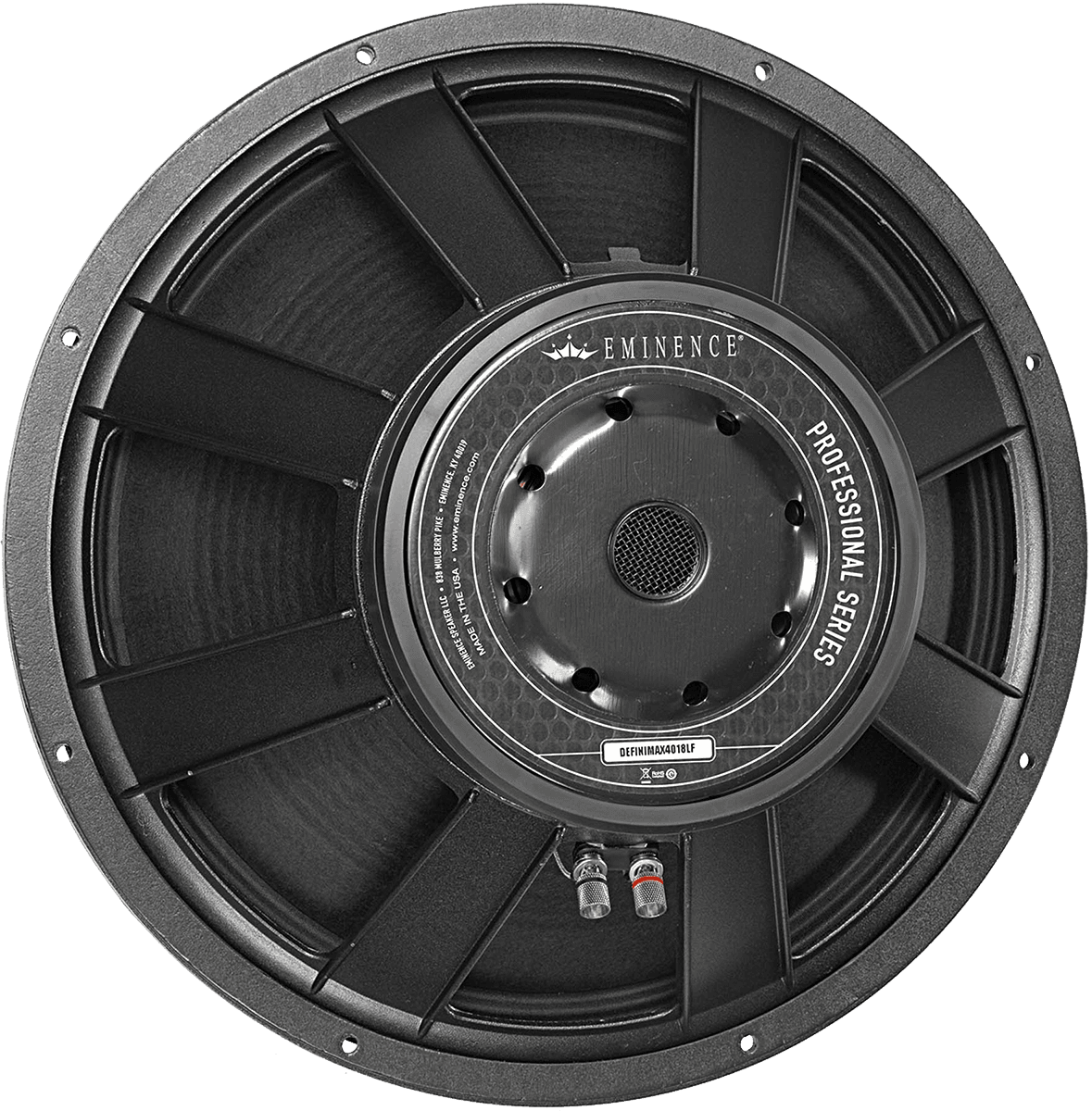

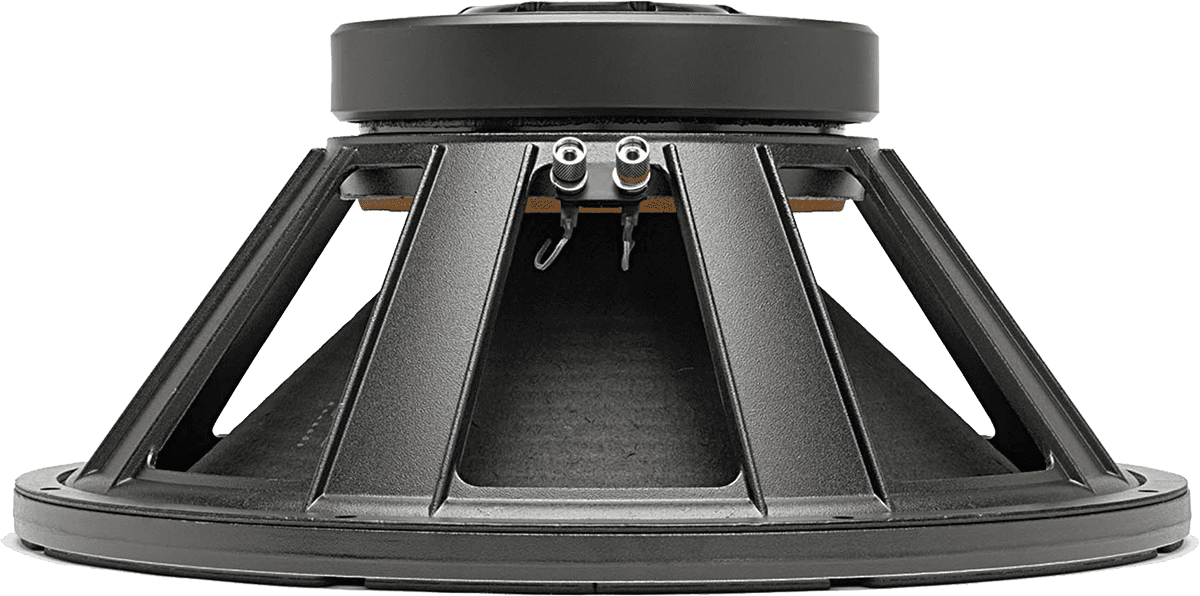

Eminence DEFINIMAX 4018LF 8 Ohm

Produktinformationen "Eminence DEFINIMAX 4018LF 8 Ohm"

Beschreibung Eminence DEFINIMAX 4018LF 8 Ohm

DEFINIMAX 4018LF - empfohlen für professionelles Audio und Bass als Subwoofer mit hoher Leistung und geringem Klirrfaktor für die Anwendung in Ein- und Mehrwegsystemen.

SPECIFICATION DEFINIMAX 4018LF
Nominal Basket Diameter 18", 457 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power

2400 W

Watts 1200 W
Resonance 30 Hz
Usable Frequency Range 31 Hz - 0.2 kHz
Sensitivity* 94.9 dB
Magnet Weight 109 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 4", 102 mm

THIELE & SMALL PARAMETERS DEFINIMAX 4018LF

Resonant Frequency (fs) 30 Hz
DC Resistance (Re) 6.1 Ω
Coil Inductance (Le) 4.54m H
Mechanical Q (Qms) 11.95
Electromagnetic Q (Qes) 0.35
Total Q (Qts) 0.34
Compliance Equivalent Volume (Vas) 254.71 liters / 9 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 1018.1 cc
Mechanical Compliance of Suspension (Cms) 0.13 mm/N
BL Product (BL) 26.75 T-M
Diaphragm Mass Inc. Airload (MMs) 217 grams
Efficiency Bandwidth Product (EBP) 86
Maximum Linear Excursion (Xmax) 8.57 mm
Surface Area of Cone (Sd) 1188 cm2
Maximum Mechanical Limit (Xlim) 15.9 mm
MOUNTING INFORMATION DEFINIMAX 4018LF
Recommended Enclosure Volume
Sealed N/a
Vented 99.11-226.54 liters / 3.5-8 cu.ft.
Driver Volume Displaced 0.234 cu.ft. / 6.62 liters
Overall Diameter 18", 457.2 mm
Baffle Hole Diameter 16.56", 420.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 17.25", 438.2mm
Depth 8.13", 206.5 mm
Net Weight 24 lbs, 10.89 kg
Shipping Weight 26 lbs, 11.79 kgs
MATERIALS OF CONSTRUCTION DEFINIMAX 4018LF
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Undercut with aluminum shorting ring and Core Periphery Ventilation

Basket Materials Die-cast aluminum basket
Cone Composition Water resistant paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Water resistant treated paper dust cap



Eminence DEFINIMAX 4018LF



DATENBLATT



Coaxial: NEIN
Größe: 18"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,31 - 0,35
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
