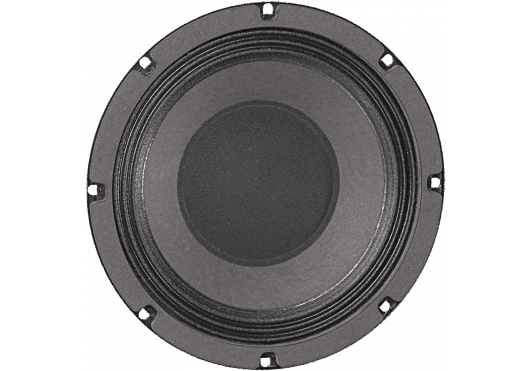

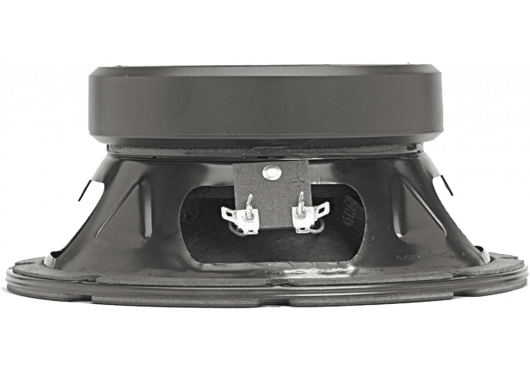

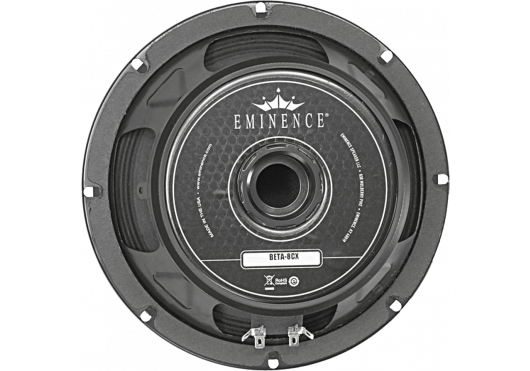

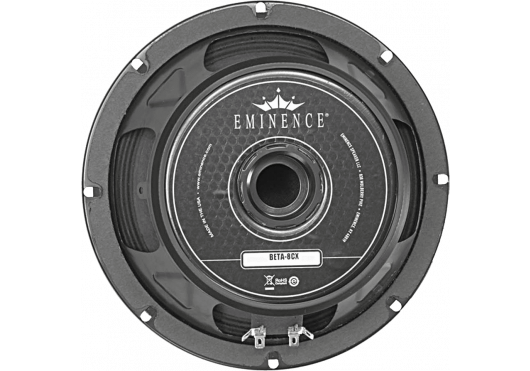

Eminence BETA 8CX 8 Ohm

Produktinformationen "Eminence BETA 8CX 8 Ohm "

Beschreibung Eminence BETA 8CX 8 Ohm

BETA 8CX - empfohlen für professionelle Audio-Mitten-Reproduktion in geschlossenen Gehäusen. Auch für Mass/Mitten- oder Bodenmonitoranwendungen in 2-Wege Boxen mit Bassreflexöffnung geeignet.


SPECIFICATION BETA 8CX
Nominal Basket Diameter 8", 203 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power

500 W

Watts 250 W
Resonance 62 Hz
Usable Frequency Range 95 Hz - 3.3 kHz
Sensitivity* 92.9 dB
Magnet Weight 38 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 2", 51 mm

THIELE & SMALL PARAMETERS BETA 8CX

Resonant Frequency (fs) 62 Hz
DC Resistance (Re) 5.37 Ω
Coil Inductance (Le) 0.67m H
Mechanical Q (Qms) 6.57
Electromagnetic Q (Qes) 0.31
Total Q (Qts) 0.29
Compliance Equivalent Volume (Vas) 21.43 liters / 0.76 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 67.2 cc
Mechanical Compliance of Suspension (Cms) 0.35 mm/N
BL Product (BL) 11.21 T-M
Diaphragm Mass Inc. Airload (MMs) 19 grams
Efficiency Bandwidth Product (EBP) 201
Maximum Linear Excursion (Xmax) 3.2 mm
Surface Area of Cone (Sd) 210 cm2
Maximum Mechanical Limit (Xlim) 6.9 mm
MOUNTING INFORMATION BETA 8CX
Recommended Enclosure Volume
Sealed 3.4-9.91 liters / 0.12-0.35 cu.ft.
Vented 7.08-16.99 liters / 0.25-0.6 cu.ft.
Driver Volume Displaced 0.028 cu.ft. / 0.79 liters
Overall Diameter 8.24", 209.3 mm
Baffle Hole Diameter 7.13", 181.1 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.22", 5.6mm
Mounting Holes B.C.D. 7.75", 196.9mm
Depth 3.5", 88.9 mm
Net Weight 6.8 lbs, 3.08 kg
Shipping Weight 7.5 lbs, 3.4 kgs
MATERIALS OF CONSTRUCTION BETA 8CX
Coil Construction Copper voice coil
Coil Former Kapton former
Magnet Composition Ferrite magnet
Core Details Tapered Coax

Basket Materials Pressed steel basket
Cone Composition Paper Cone
Cone Edge Composition Sealed cloth cone edge
Dust Cap Composition Zurette dust cap


Eminence BETA 8CX


DATENBLATT



Coaxial: JA
Größe: 8"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,26 - 0,30
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
