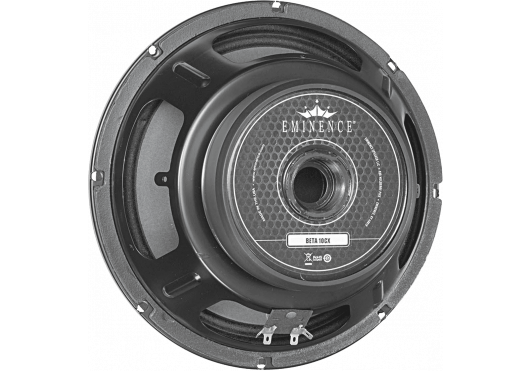

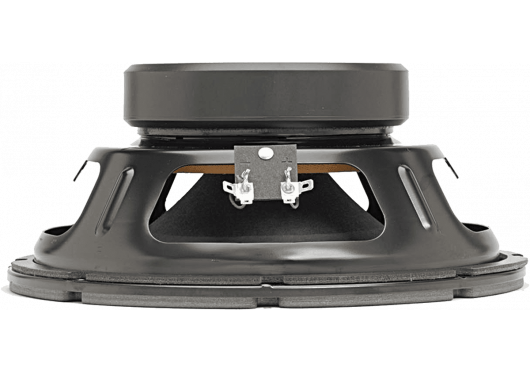

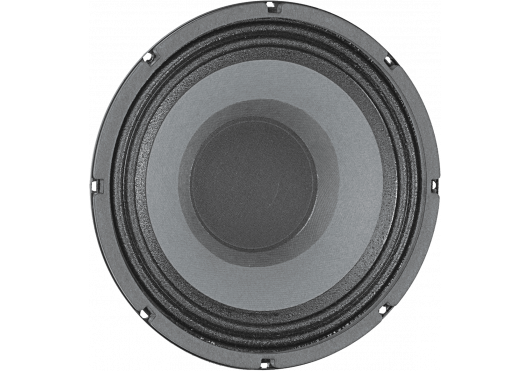

Eminence BETA 10CX 8 Ohm

Produktinformationen "Eminence BETA 10CX 8 Ohm"

Beschreibung Eminence BETA 10CX 8 Ohm

BETA 10CX - empfohlen für professionelle Audio Sprachanwendungen oder als Bass/Mitten- Lautsprecher in geschlossenen Gehäusen. Funktioniert auch in Bassreflexgehäusen als Satellite- oder Monitorbox.


SPECIFICATION BETA 10CX
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power

500 W

Watts 250 W
Resonance 49 Hz
Usable Frequency Range 60 Hz - 4 kHz
Sensitivity* 94.3 dB
Magnet Weight 38 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 2", 51 mm

THIELE & SMALL PARAMETERS BETA 10CX

Resonant Frequency (fs) 49 Hz
DC Resistance (Re) 5.48 Ω
Coil Inductance (Le) 0.67m H
Mechanical Q (Qms) 6.16
Electromagnetic Q (Qes) 0.41
Total Q (Qts) 0.38
Compliance Equivalent Volume (Vas) 61.1 liters / 2.16 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 172.5 cc
Mechanical Compliance of Suspension (Cms) 0.37 mm/N
BL Product (BL) 10.88 T-M
Diaphragm Mass Inc. Airload (MMs) 29 grams
Efficiency Bandwidth Product (EBP) 120
Maximum Linear Excursion (Xmax) 5 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 7.6 mm
MOUNTING INFORMATION BETA 10CX
Recommended Enclosure Volume
Sealed 14.16-42.48 liters / 0.5-1.5 cu.ft.
Vented 15.29-87.78 liters / 0.54-3.1 cu.ft.
Driver Volume Displaced 0.041 cu.ft. / 1.17 liters
Overall Diameter 10.08", 256 mm
Baffle Hole Diameter 9.18", 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 9.66", 245.4mm
Depth 3.98", 101.1 mm
Net Weight 7.3 lbs, 3.31 kg
Shipping Weight 8.4 lbs, 3.81 kgs
MATERIALS OF CONSTRUCTION BETA 10CX
Coil Construction Copper voice coil
Coil Former Kapton former
Magnet Composition Ferrite magnet
Core Details Tapered Coax

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Zurette dust cap


Eminence BETA 10CX


DATENBLATT


Coaxial: JA
Größe: 10"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,36 - 0,40
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
