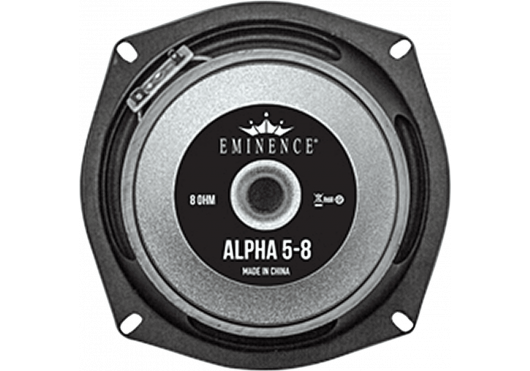

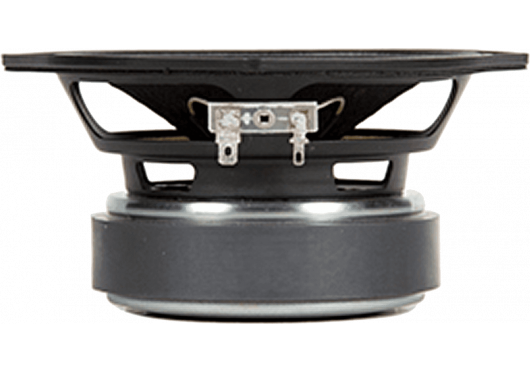

Eminence ALPHA 5-8 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
85,00 €*
|
| Bis 4 |
84,00 €*
|
| Bis 6 |
82,00 €*
|
| Ab 7 |
81,00 €*
|
Versandfertig in 60 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11837
Produktinformationen "Eminence ALPHA 5-8 8 Ohm"
Beschreibung Eminence ALPHA 5-8
Der Eminence ALPHA 5-8 8 Ohm bietet ein exzellentes Preis-/Leistungsverhältnis. Dieser 5"- Bass/Mitten- Speaker ALPHA 5-8 mit einer Dauerleistung von 250 Watt verfügt über eine wasserfeste Membran und eine Staubkappe. Damit ist er eine ausgezeichnete Wahl für Line- oder Säulen-Array Anwendungen
SPECIFICATION ALPHA 5-8 |
|
| Nominal Basket Diameter | 5", 127 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power |
250 W |
| Watts | 125 W |
| Resonance | 87 Hz |
| Usable Frequency Range | 87 Hz - 3.5 kHz |
| Sensitivity* | 89.4 dB |
| Magnet Weight | 20 oz. |
| Gap Height | 0.23", 5.8 mm |
| Voice Coil Diameter | 1.5", 38 mm |
| THIELE & SMALL PARAMETERS ALPHA 5-8 | |
| Resonant Frequency (fs) | 87 Hz |
| DC Resistance (Re) | 5 Ω |
| Coil Inductance (Le) | 0.29m H |
| Mechanical Q (Qms) | 11.81 |
| Electromagnetic Q (Qes) | 0.56 |
| Total Q (Qts) | 0.54 |
| Compliance Equivalent Volume (Vas) | 6.14 liters / 0.22 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 60.8 cc |
| Mechanical Compliance of Suspension (Cms) | 0.42 mm/N |
| BL Product (BL) | 6.22 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 8 grams |
| Efficiency Bandwidth Product (EBP) | 155 |
| Maximum Linear Excursion (Xmax) | 5.92 mm |
| Surface Area of Cone (Sd) | 102.6 cm2 |
| Maximum Mechanical Limit (Xlim) | 6.4 mm |
| MOUNTING INFORMATION ALPHA 5-8 | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 1.091 cu.ft. / 30.9 liters |
| Overall Diameter | 5.87", 149.1 mm |
| Baffle Hole Diameter | 4.8", 121.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.2", 5mm |
| Mounting Holes B.C.D. | 5.39", 136.9mm |
| Depth | 2.91", 73.9 mm |
| Net Weight | 3.1 lbs, 1.41 kg |
| Shipping Weight | 3.5 lbs, 1.59 kgs |
| MATERIALS OF CONSTRUCTION ALPHA 5-8 | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Water resistant pulp |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Water resistant paper |
Eminence ALPHA 5-8 Low-Mids
| Coaxial: | NEIN |
|---|---|
| Größe: | 5" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,51 - 0,60 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
