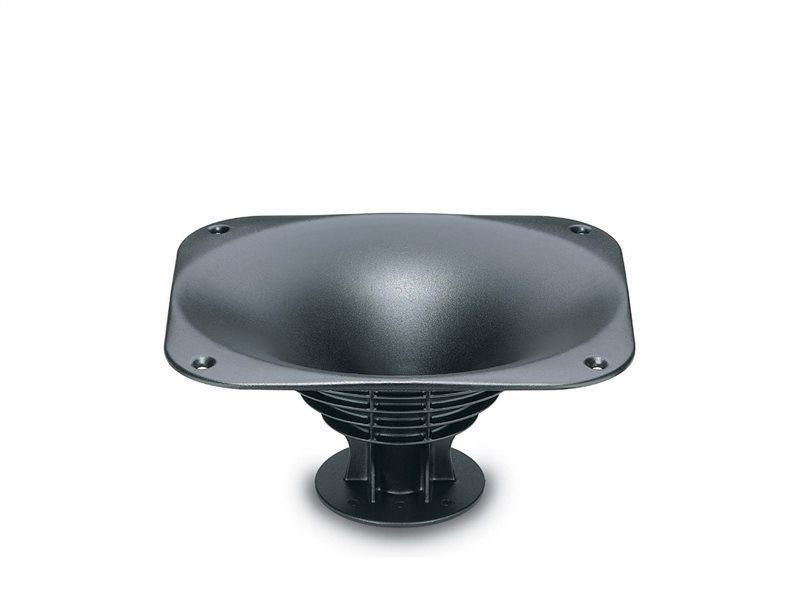

Produktinformationen "Eighteensound XT1086"
Featuring the unique Eighteen Sound elliptical shape (ESS technology),
the XT1086 Constant Coverage High Frequency Horn has been designed for
use in sound systems where the highest sound quality is required. With a
1 inch throat entry, the XT1086 has been designed to match the Eighteen
Sound 1 inch exit high frequency compression drivers perfectly. The

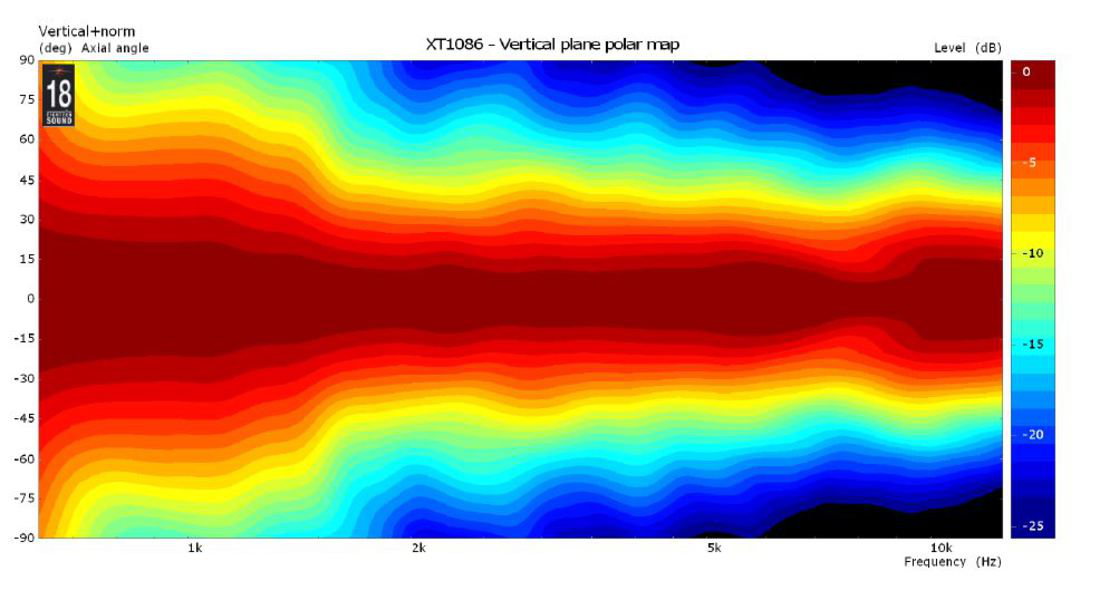

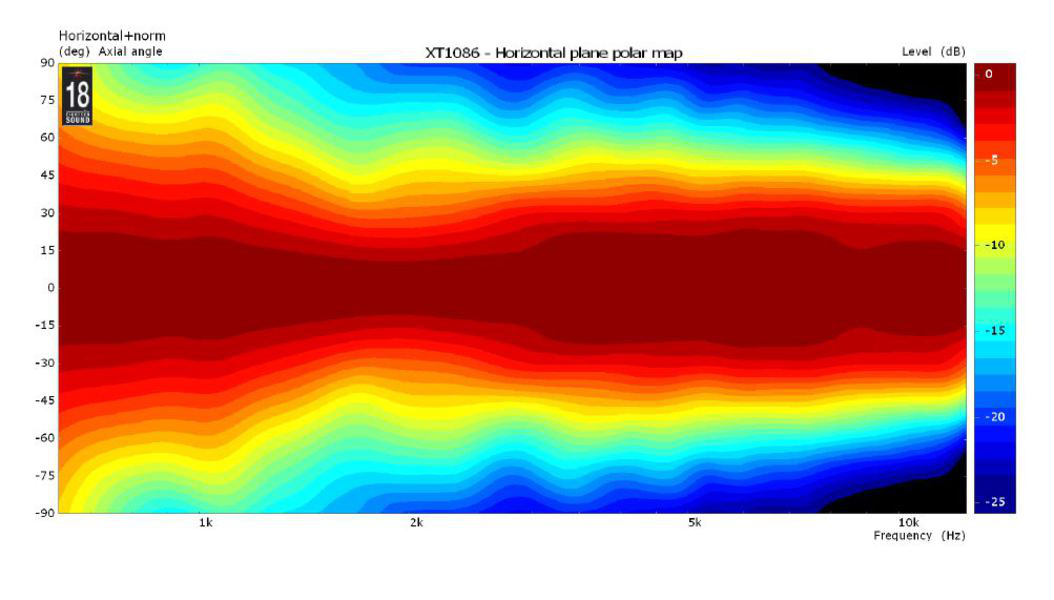

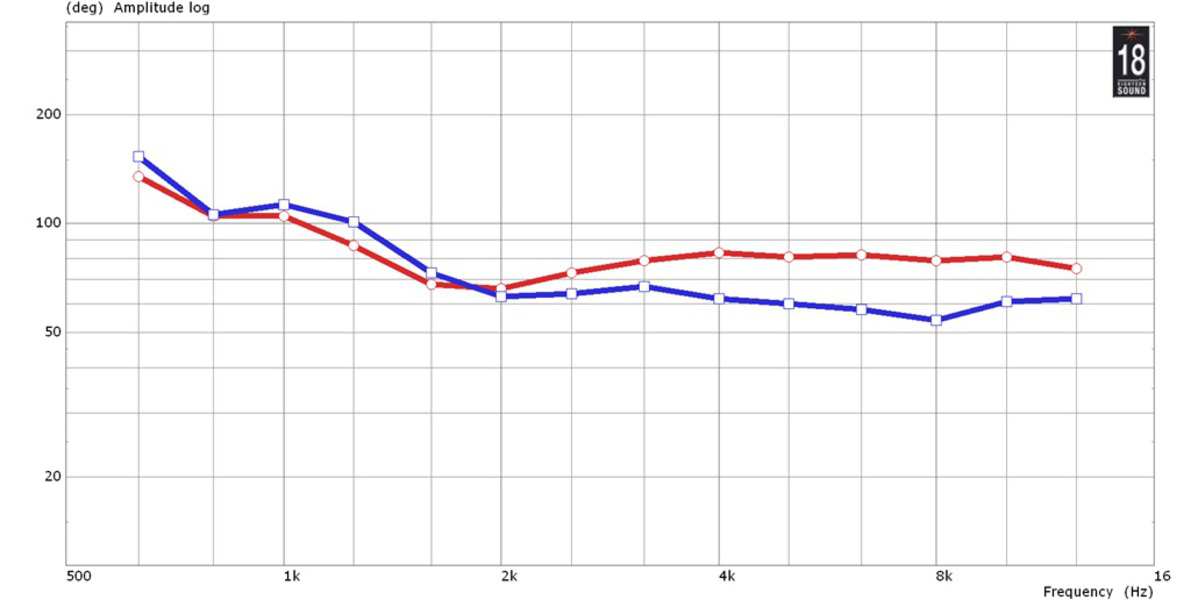

XT1086 maintains nominal 80° Horizontal x 60° Vertical pattern control.
It provides consistent on-axis and off-axis frequency response from
1,4kHz to 16kHz in the horizontal plane and from 1,5kHz to 16kHz in the
vertical plane. Horn directivity is constant from 1,4kHz. Thanks to its
compact vertical mouth dimension, the XT1086 can easily be staked
vertically when lower frequency control is required. The main innovation
that the XT1086 introduces, is the improved external shape, providing
high structural rigidity. This has been developed using exclusive a
computer aided vibration analysis system. This product provides low
distortion and a spherical wave-front, avoiding reflections and other
disadvantages usually associated with diffraction horns. The die-cast
aluminum construction provides optimum heat transfer, lowering the
driver power compression and improving its general power handling
capability.
Coaxial: | NEIN |
---|---|
Horn HF & MF: | 1" |
Sperrgut: | NEIN |
