Anzahl | Stückpreis |
---|---|
Bis 2 |
135,00 €*
|
Bis 4 |
134,00 €*
|
Bis 6 |
133,00 €*
|
Ab 7 |
132,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW10237

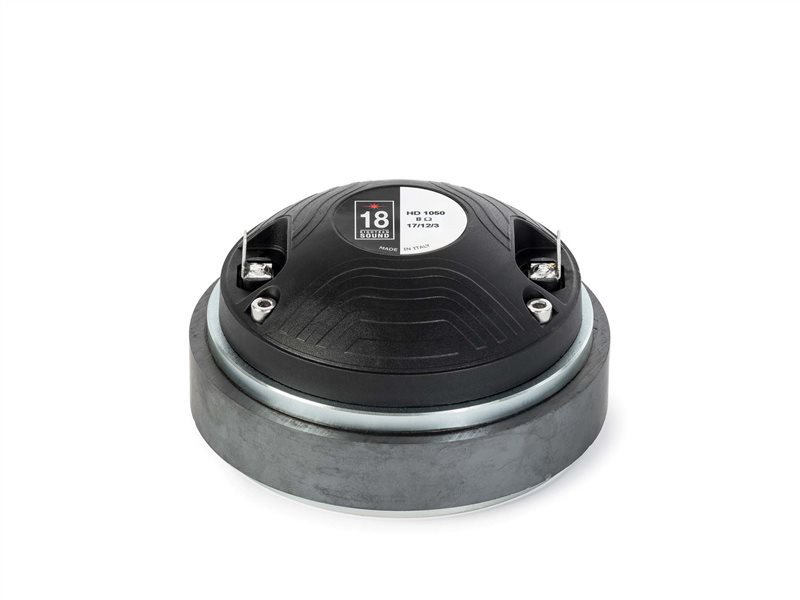

Produktinformationen "Eighteensound HD1050 8 Ohm"
The HD1050 one inch exit high frequency compression driver has been
designed for use in high quality audio systems. Equipped with Eighteen
Sound proprietary Phase Plug architecture, the HD1050 has been designed
to give high level manufacturing consistency and smooth coherent wave
front at the horn entrance across the whole working frequency range. The
phase plug with its short openings and high flare rate value assures
low distortion and demonstrates remarkable improvements in mid-high
frequency reproduction. The diaphragm assembly is composed of a
titanium dome sandwiched to a proprietary treated polyester suspension
unit. It has been designed to maintain low resonance, lowering the
minimum crossover point value at 1,4kHz. An edge-wound aluminum voice
coil, wound on proprietary treated Nomex, completes the diaphragm
assembly. Thanks to its physical properties, the proprietary treated
Nomex former has a 30% higher value of tensile elongation at a working
operative temperature (200°C) when compared to Kapton. This feature
enables proper energy transfer control from the voice coil to the dome
in real working conditions. Moreover, this proprietary former material
is also suitable to for use in higher moisture content environments.
The HD1050 powerful ceramic magnet assembly has been designed to obtain
16 KGauss in the gap and within a compact ferrite motor structure.
Coaxial: | NEIN |
---|---|
Diaphragma / Dome: | Titanium |
Größe: | 1" |
Hochtöner Bauform: | Kompressionstreiber |
Impedanz: | 8 Ohm |
Magnet: | Ferrit |
Sperrgut: | NEIN |
