Anzahl | Stückpreis |
---|---|
Bis 2 |
97,00 €*
|
Bis 4 |
96,50 €*
|
Bis 6 |
96,00 €*
|
Ab 7 |
95,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW10238

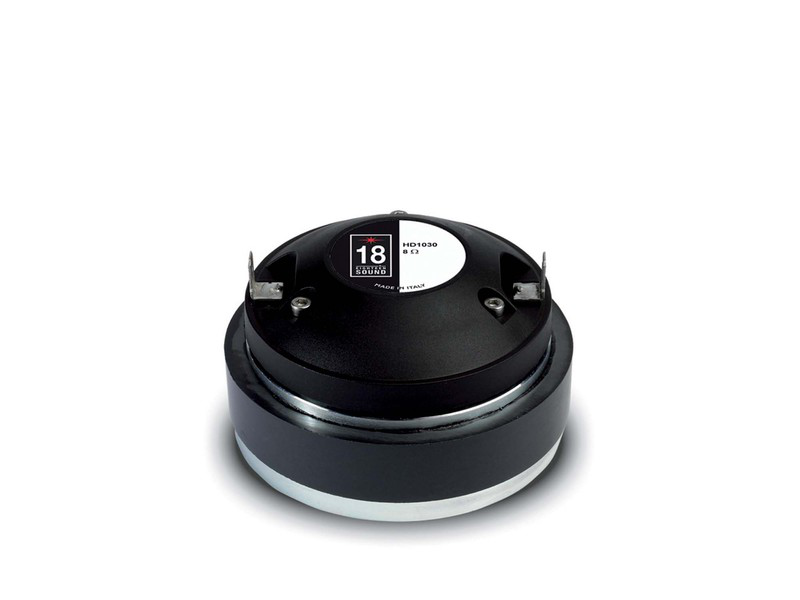

Produktinformationen "Eighteensound HD1030 8 Ohm"
The HD1030 1 inch exit high frequency compression driver has been
designed for use in two-way audio systems. The transducer exhibits a

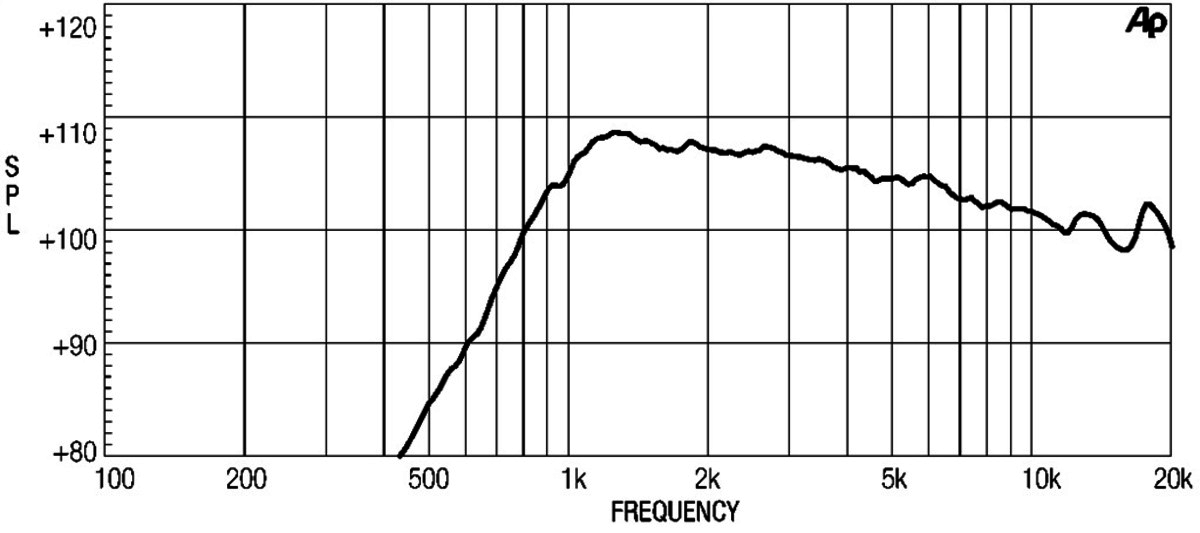

constant slope response from 1.5kHz to 18kHz with a uniform and smooth

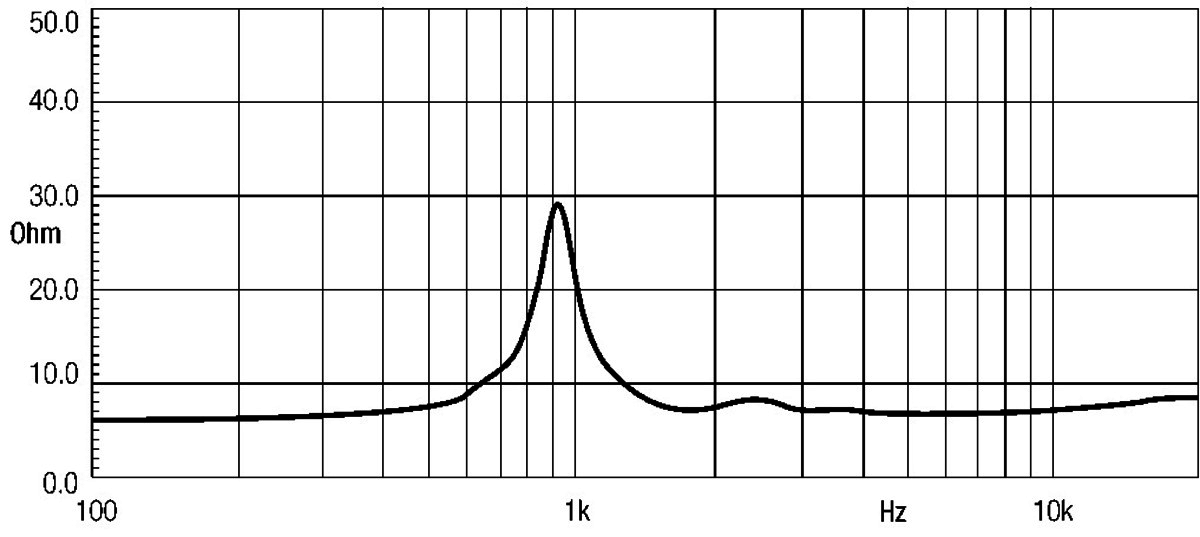

roll-off. With a 800 Hz free air resonance frequency, the HD1030 can
easily be cut-off at 1800Hz and is capable of 60W continuous power
handling with a 1800Hz pink-noise signal, and a 6dB crest factor with a
minimum 12dB/oct crossover slope. Equipped with unique Phase Plug
architecture, the HD1030 has been designed to give a smooth coherent
wavefront at the horn entrance in the whole working frequency range, as
well as high level manufacturing consistency. The phase plug with its
short openings and high flare rate value assures low distortion and
demonstrates remarkable improvements in mid-high frequency reproduction.
The titanium diaphragm assembly, with its ellipsoidal suspension
shape, exhibits a constant slope response from 1.5kHz up to 18kHz with
uniform smooth roll-off behavior. An edge-wound aluminum voice coil,
wound on proprietary treated Nomex, completes the diaphragm assembly.
Nomex shows a 30% higher value of tensile elongation at a working
operative temperature (200°C) when compared to Kapton. This feature
enables proper energy transfer control from the voice coil to the dome
in real working conditions. Moreover, this proprietary former material
is also suitable for use in higher moisture content environments. The
HD1030 powerful ceramic magnet assembly has been designed to obtain 15
KGauss in the gap within a compact ferrite motor structure.
Coaxial: | NEIN |
---|---|
Diaphragma / Dome: | Titanium |
Größe: | 1" |
Hochtöner Bauform: | Kompressionstreiber |
Impedanz: | 8 Ohm |
Magnet: | Ferrit |
Sperrgut: | NEIN |
