Eighteensound 6ND410 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
161,00 €*
|
| Bis 4 |
159,00 €*
|
| Bis 6 |
158,00 €*
|
| Ab 7 |
157,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW10107

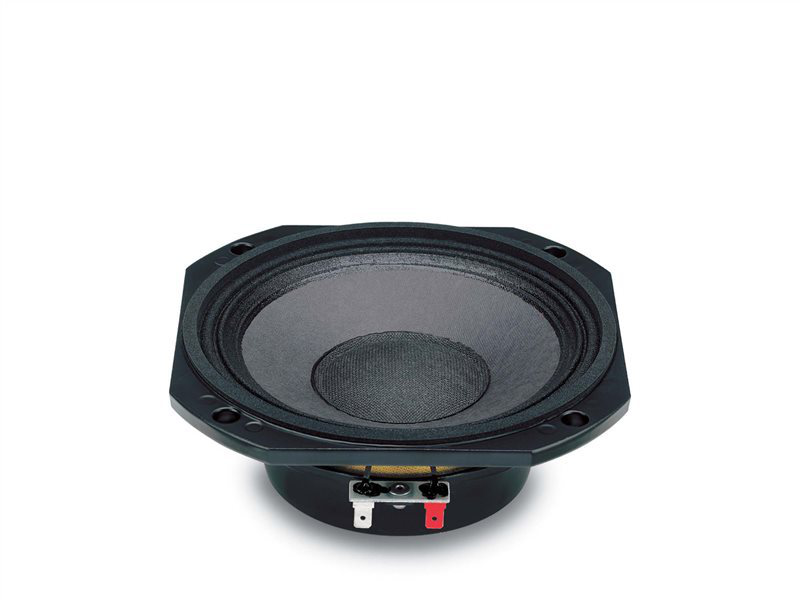

Produktinformationen "Eighteensound 6ND410 8 Ohm"
The 6ND410 is a very high output, state-of-the-art midrange product for
high quality professional use. The high level of sound quality has been
achieved thanks to extensive research by Eighteen Sound engineers which
focused on implementing mid frequencies intelligibility. The 6ND410 can
be used as a midrange in both horn and direct radiation, closed or
reflex enclosures, as small as 2 liters. The extremely powerful external
neodymium magnet assembly assures high flux concentration, low power
compression and excellent heat exchange. Consequently, the levels of
force factor and power handling are at a top professional level with an
optimum power to weight ratio. A consistent heat transfer is guaranteed
by the encapsulation of the magnetic structure in the interior of the
basket, offering a large contact space between the back plate and the
dissipating structure. The curvilinear cone-surround, has been created
using computer aided vibrational modelling software to move all
undesired bell modes out of the usable frequency range. The 45 mm
edge-wound voice coil assembly and terminals have been designed to
minimise the moving mass while reinforcing force transmission. The 3
threaded back plate holes give the final user the opportunity to insert
an external customised heat sink, if further heat dissipation is
required. A proprietary humidity-block cone treatment makes the
transducer suitable for outdoor use in adverse weather conditions. In
addition, a special coating applied to both the top and back plates
makes the 6ND410 far more resistant to the corrosive effects of salts
and oxidization.
| Coaxial: | NEIN |
|---|---|
| Größe: | 6,5" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,21 - 0,25 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
