Eighteensound 15NCX910N 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
591,00 €*
|
| Bis 4 |
585,00 €*
|
| Bis 6 |
580,00 €*
|
| Ab 7 |
575,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW10228
Produktinformationen "Eighteensound 15NCX910N 8 Ohm"

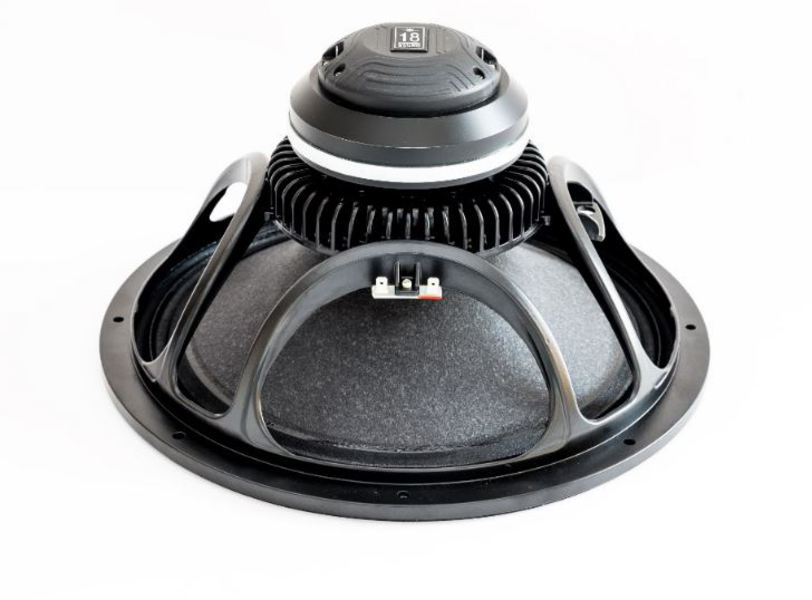

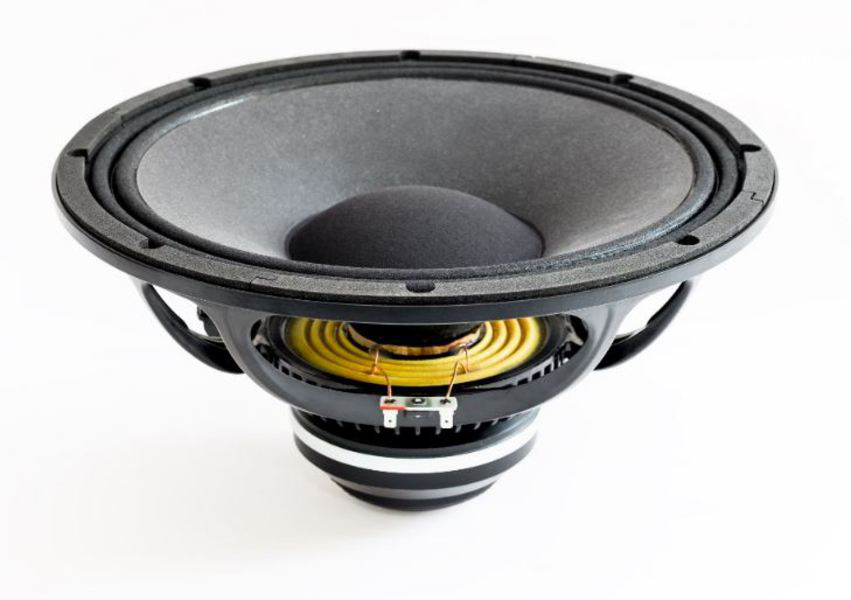

The 15NCX910N is a 15" diameter neodymium coaxial transducer designed
for use in compact reflex enclosures and stage monitors as small as 50
lt with a nominal dispersion of 80 degrees equipped with a state of the
art Nitride coat titanium dome for the high frequency section.
The curvilinear profile LF cone provides smooth response within its intended frequency range thanks to its high damping pulp composition.
The 75 mm (3 in) LF copper voice coil employs our Interleaved Sandwich Voice coil (ISV) technology, in which a high strength former carries windings on both the outer and inner surfaces. This results in a balanced coil with a uniform distribution of mass and motive energy and an extremely linear motor assembly.
The low distortion and sound quality are further improved by an aluminum demodulating ring (SDR technology) that flatten LF impedance and phase with a constant power transfer. Equipped with proprietary architecture, the integrated HF compression driver has been designed to give smooth coherent wavefront in the horn entrance in all working frequency range and high level manufacturing consistency, assuring low distortion and remarkable improvements in mid-high frequency reproduction. A copper ring on the pole piece reduces the inductance figure of frequencies above 10 kHz, improving phase and impedance linearisation.
The 3" diameter pure titanium diaphragm assembly, treated with the 18sound proprietary Nitride coat is increasing the stiffness of titanium reducing drastically resonances and distortion.
A specific HF exit profile design has been chosen in order to maximize the cone’s profile coupling
The curvilinear profile LF cone provides smooth response within its intended frequency range thanks to its high damping pulp composition.
The 75 mm (3 in) LF copper voice coil employs our Interleaved Sandwich Voice coil (ISV) technology, in which a high strength former carries windings on both the outer and inner surfaces. This results in a balanced coil with a uniform distribution of mass and motive energy and an extremely linear motor assembly.
The low distortion and sound quality are further improved by an aluminum demodulating ring (SDR technology) that flatten LF impedance and phase with a constant power transfer. Equipped with proprietary architecture, the integrated HF compression driver has been designed to give smooth coherent wavefront in the horn entrance in all working frequency range and high level manufacturing consistency, assuring low distortion and remarkable improvements in mid-high frequency reproduction. A copper ring on the pole piece reduces the inductance figure of frequencies above 10 kHz, improving phase and impedance linearisation.
The 3" diameter pure titanium diaphragm assembly, treated with the 18sound proprietary Nitride coat is increasing the stiffness of titanium reducing drastically resonances and distortion.
A specific HF exit profile design has been chosen in order to maximize the cone’s profile coupling
Due
to the widespread use of high power audio systems at outdoor events,
the ability to perform in adverse weather conditions is an additional
key feature of the 15NCX910N. This has been achieved using exclusive
cone and magnet plate treatment processes which increase resistance
against corrosion and make the cone water repellent.
| Coaxial: | JA |
|---|---|
| Diaphragma / Dome: | Titanium |
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
