Eighteensound 15NCX1000 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
988,00 €*
|
| Bis 4 |
980,00 €*
|
| Bis 6 |
971,00 €*
|
| Ab 7 |
963,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW10226
Produktinformationen "Eighteensound 15NCX1000 8 Ohm"

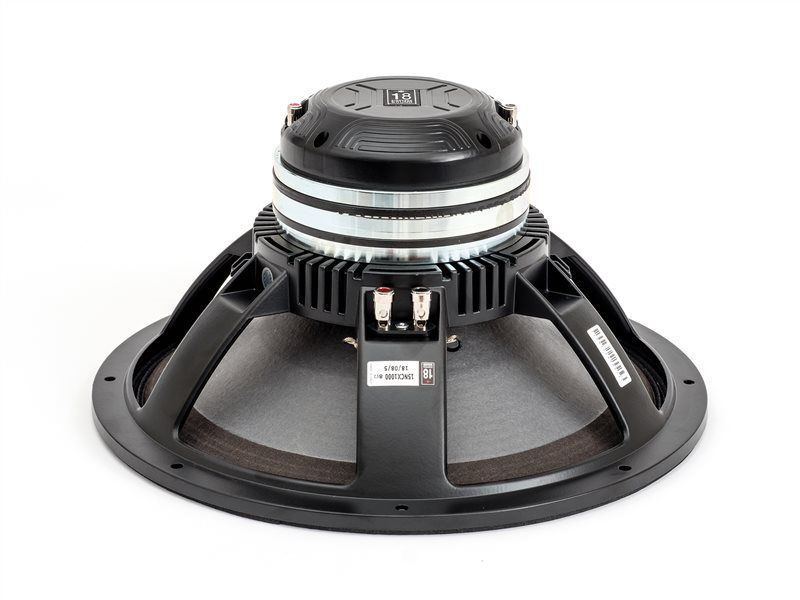

The 15NCX1000 is a 15" diameter neodymium coaxial transducer designed
for use in compact reflex enclosures and stage monitors. The LF cone
provides smooth response within its intended frequency range thanks to
its high damping pulp composition. Equipped with proprietary phase plug,
the integrated 100mm (4") HF compression driver has been designed to
give smooth coherent wavefront in the horn entrance in all working
frequency range and high level manufacturing consistency. The phase plug
assures low distortion with remarkable improvements in mid-high
frequency reproduction. A copper ring on the pole piece reduces the
inductance figure of frequencies above 10 kHz, improving phase and
impedance linearisation.
The 4" diameter HF diaphragm assembly uses a high strength, high temperature treated Nomex voice coil former joined directly to the titanium diaphragm on its upper bend edge, assuring extended frequency energy transfer. This improves linearity and shows unparalleled reliability when compared with a straight former joint.
A specific HF exit profile design has been chosen in order to maximize the cone’s profile coupling.
The 4" diameter HF diaphragm assembly uses a high strength, high temperature treated Nomex voice coil former joined directly to the titanium diaphragm on its upper bend edge, assuring extended frequency energy transfer. This improves linearity and shows unparalleled reliability when compared with a straight former joint.
A specific HF exit profile design has been chosen in order to maximize the cone’s profile coupling.
The unique dual magnet single motor features high grade neodymium that
makes the 15NCX1000 a lightweight speaker for its performance class.
| Coaxial: | JA |
|---|---|
| Diaphragma / Dome: | Titanium |
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
