Eighteensound 15MB700 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
229,00 €*
|
| Bis 4 |
227,00 €*
|
| Bis 6 |
226,00 €*
|
| Ab 7 |
224,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW10169

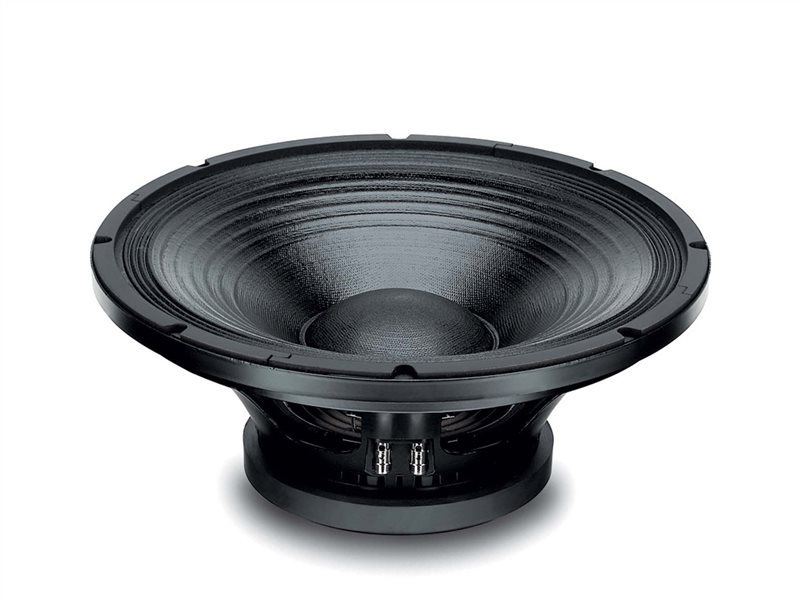

Produktinformationen "Eighteensound 15MB700 8 Ohm"
The 15MB700 very high output mid-bass transducer shows exceptional
efficiency and is primarily intended for 2-way very compact reflex
systems (75 lt.), 3-way systems and horn loaded applications. It
combines high sensitivity (103 dB 1W/1m) with a high power handling
capability. The smooth textured curvilinear paper cone, in conjunction
with the viscose dampened multiroll suspension, provides excellent cone
dampening and excursion control. The 75 mm diameter aluminum voice coil
features the same technology fitted to our top-of-the-range 4"
voice-coil models. It employs Interleaved Sandwich Voice coil (ISV)
technology, in which a high strength fiberglas former carries windings
on both the outer and inner surfaces to achieve a mass balanced coil.
This results in an extremely linear motor assembly with a reduced
tendency for eccentric behavior when driven hard. The low coil
inductance results in an improved transient response. Excellent heat
dissipation has been achieved by incorporating air channels into the
basket design, between the basket and the top plate. Maximum flux
concentration and force factor in the gap are assured by the unique
shape and design of the top and back plates which have been designed
using our in-house Magnetic Flux FEA CAD resource. Due to the
increasing use of audio systems at outdoor events, the ability to
perform in adverse weather conditions or in high-humidity areas is a key
feature of the 15MB700. This has been achieved using exclusive cone and
magnetic plate treatment processes which allows the speaker to resist
corrosion and render the cone water repellent.
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
