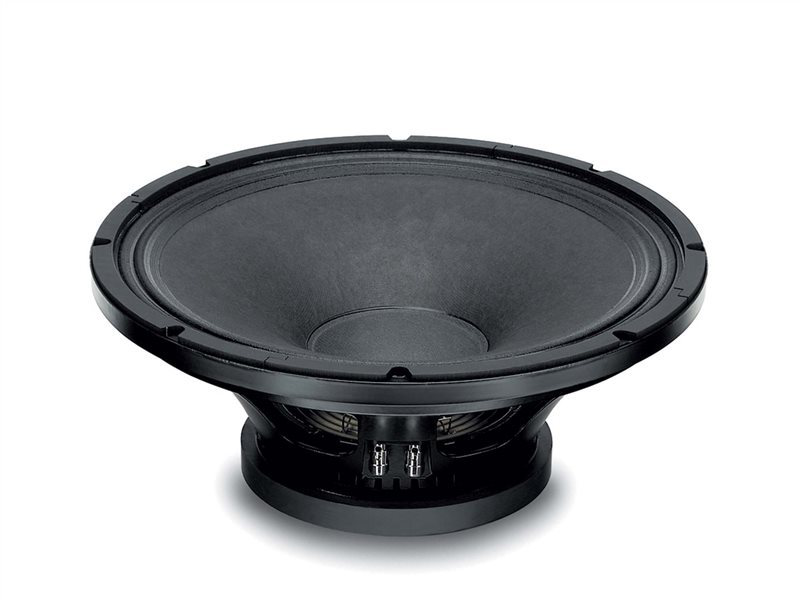

Eighteensound 15MB650 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
267,00 €*
|
| Bis 4 |
265,00 €*
|
| Bis 6 |
263,00 €*
|
| Ab 7 |
260,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW10171
Produktinformationen "Eighteensound 15MB650 8 Ohm"
The 15MB650 high output mid bass has been designed for use as a bass and
low-midrange driver in tuned reflex enclosures, in 2- or 3-way systems.
When used in a 2-way system, we recommend a 1" or 2" exit compression
driver to obtain the best sound quality and directional control. The
15MB650 combines a high sensitivity value
(101dB 1W/1m) with high power handling capabilities.
The curvilinear paper cone, in conjunction with the viscose dampened double half-roll suspension, provides excellent transient response and cone damping.
The 75 mm Ø copper voice coil utilises the same technology fitted to our top-of-the-range 4” voice coil models. It employs the Interleaved Sandwich Voice coil (ISV), in which a high strength fiberglas former carries windings on the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard.
The low inductance coil gives improvements in transient response.
Excellent heat dissipation has been achieved by incorporating air channels in the basket design, between the basket and top plate.
Maximum flux concentration and force factor in the gap are assured by the unique shape and design of the face and back plates, which have been created using our in-house Magnetic Flux FEA CAD resource.
(101dB 1W/1m) with high power handling capabilities.
The curvilinear paper cone, in conjunction with the viscose dampened double half-roll suspension, provides excellent transient response and cone damping.
The 75 mm Ø copper voice coil utilises the same technology fitted to our top-of-the-range 4” voice coil models. It employs the Interleaved Sandwich Voice coil (ISV), in which a high strength fiberglas former carries windings on the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard.
The low inductance coil gives improvements in transient response.
Excellent heat dissipation has been achieved by incorporating air channels in the basket design, between the basket and top plate.
Maximum flux concentration and force factor in the gap are assured by the unique shape and design of the face and back plates, which have been created using our in-house Magnetic Flux FEA CAD resource.
The special treatment applied to the top and the back plate is far more
resistant to the corrosive effects of salts and oxidization than any
other treatment in use
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
