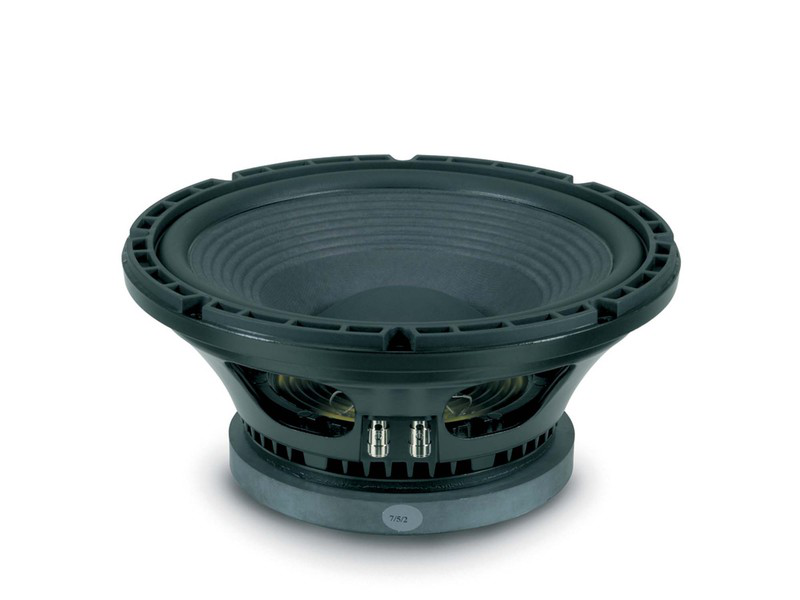

Eighteensound 12LW801 8 Ohm

The 12LW801 is a 12" low frequency driver, achieving high SPL at low frequencies with reduced THD.
The 12LW801 has been designed for use as a low bass or sub-woofer component, in either highly compact reflex, bandpass or horn loaded configurations. It provides clean, linear frequency reproduction at high power levels, or as part of a compact high power fullrange system. In its reflex configuration, it can be used in extremely compact enclosures (40 – 70 lt), making it ideal for portable applications, such as road shows or use with bass musical instruments.
The high excursion capabilities of the double-action roll surround and suspension system, in conjunction with Eighteen Sound’s Double Silicon Spider technology (DSS), enable the 12LW801 to achieve exceptionally high levels of linear travel for a 12" unit.
With its custom design surround, the carbon fiber reinforced curvilinear ribbed cone assures smooth response and exceptional strength, with maximum reliability under high mechanical stress.
The 75 mm state-of-the-art voice coil is similar to that of our 18LW1400 top-of-the-range model. It employs Interleaved Sandwich Voice coil (ISV), in which a high strength fiberglas former carries windings on both its outer and inner surfaces, resulting in a mass balanced coil and providing a uniform motive drive. This, in conjunction with the use of unique high temperature resin adhesives, creates an extremely linear motor assembly with a reduced tendency for break-up under hard drive conditions. Excellent heat dissipation has been achieved by incorporating air channels between the basket and the top plate.
Maximum flux concentration and force factor in the gap is assured by the unique shape and design of the top and back plates, designed using our in-house Magnetic Flux FEA CAD resource.
